TORNADO | ACME LIGHTING

主要特征

5 x 120W RGBL LED

光源(光束端)

120 x 0.5W RGB LED

光源(外圈LED)

20,000 小时

光源预期使用寿命

13,000 lumens

灯具光通量

2,500K – 8,000K

线性CTO色温调节

3°-30°

光束角度

4°-35° mm

光斑角度

30 kg (66.2 lbs)

灯具重量

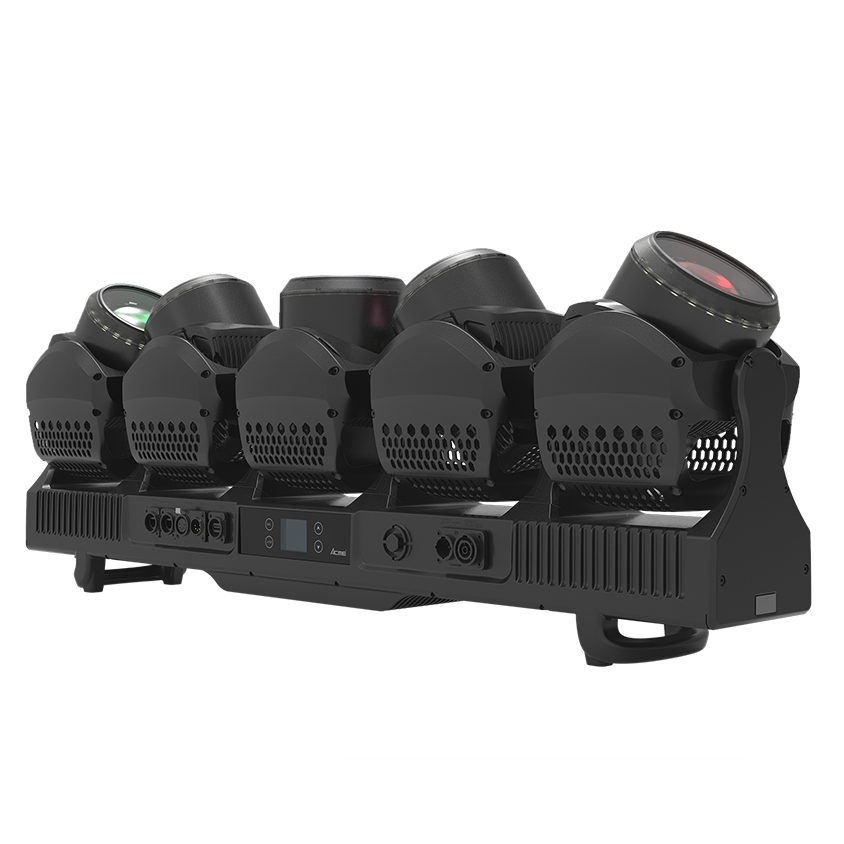

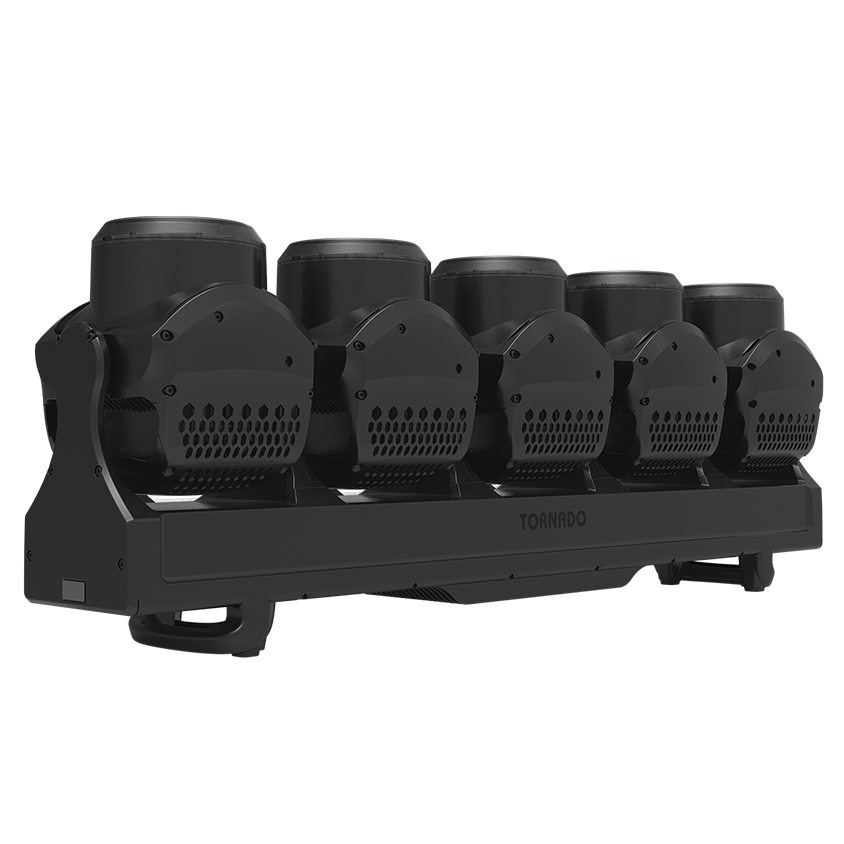

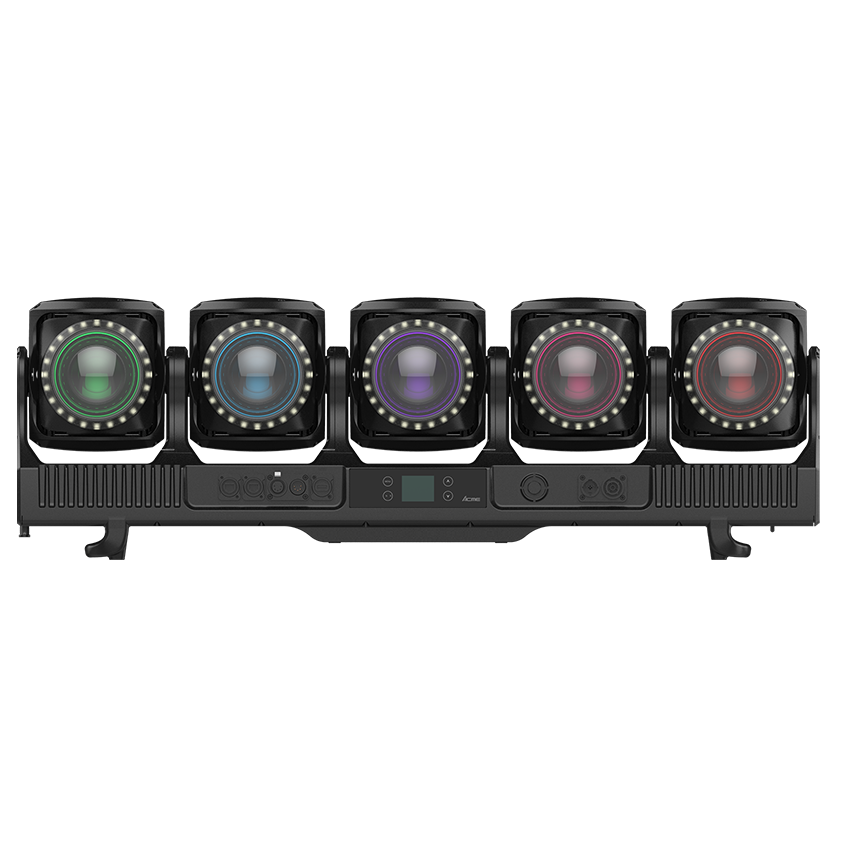

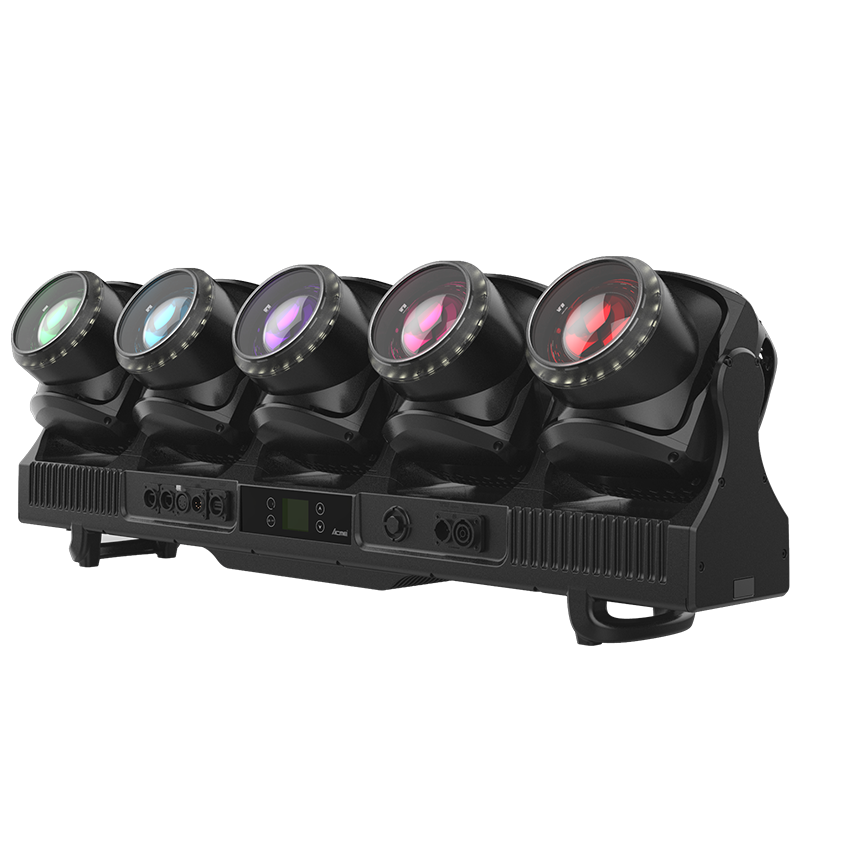

功能概述

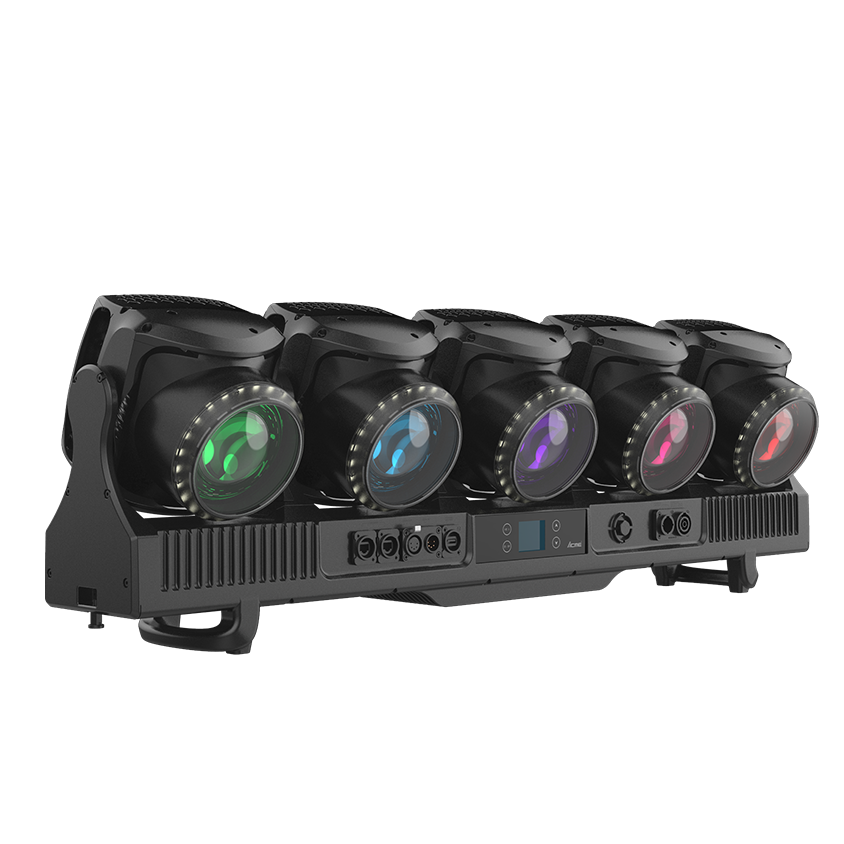

ACMETB 5 IP 具有创新的设计和外观，旨在将您的视觉体验提升到新的高度。它拥有强大的5颗120W LED作为其主要光源，辅以外圈120颗0.5W RGB LED，将高性能和多功能性融为一体。

灯具配备了五个独立控制的灯头，具有平滑的X轴Y轴运动，为灯光师的艺术创作提供了无限的可能性。

光束角度3°-30°，光斑角度4°-35°。快速线性调焦功能使其产生锐利、饱和的光束效果，确保您的视觉效果呈现出足够的活力。

TB 5 IP具有全天候的IP66防护等级，可抵御各种恶劣天气，确保在室内或室外的任何环境中都能保持稳定的性能。

产品视频

技术参数

型号

产品型号: TORNADO
Model Code: TB 5 IP

T/CETA001-2021标准型号

XG-LED660C4/D66

光源

光源:
- 光束端: 5 x 120W RGBL LEDs
- 外圈LED: 120 x 0.5W RGB LEDs
灯具光通量: 13,000 lumens
光源预期使用寿命: 20,000小时*
*数据由光源供应商提供

光学系统

光束角度: 3°-30°
光斑角度: 4°-35°

控制与程序

4 个触摸按键
控制面板: LCD显示屏
控制协议: DMX512，RDM，Art-Net，sACN
DMX 通道模式: 5
控制通道: 41/71/75/85/170
软件升级: 通过DMX或者USB连接升级软件

X轴/Y轴

X轴运转角度: 59°
Y轴运转角度: 221°
X轴/Y轴位置失步自动校正
X轴/Y轴精度扫描: 16 bit

颜色盘

线性CTO色温调节: 2,500K-8,000K

其他效果

多种速度频闪效果
0-100%顺滑调光
卓越的色彩宏效果
卓越的混色效果
采用5个带XY轴转动灯头, 可独立控制
外圈采用24颗彩光LED, 可独立控制
锐利饱满的光束
快速线性调焦功能

电气与接口

输入电压范围: 180-240Vac; 50/60Hz
功率: 935W
电源插座: 防水电源连接器输入/输出
信号输入/输出: 3芯防水卡侬头插座，RJ45接口

灯具规格

灯具尺寸:
- 宽: 1,000 mm (39.4")
- 深: 192 mm (7.5")
- 高: 350 mm (13.7")
- 净重: 30.0 kg (66.2 lbs)

包装规格

飞行箱尺寸:
- 宽: 1,220 mm (48.0")
- 深: 610 mm (24.0")
- 高: 615 mm (24.2")
- 重量: 115 kg (253.5 lbs) (含飞行箱, 2装1标准)
纸箱尺寸:
- 宽: 1,120 mm (44.0")
- 深: 460 mm (17.7")
- 高: 310 mm (12.2")
- 重量: 35.5 kg (78.3 lbs) (含纸箱, 1装1标准)

工作环境

最高环境温度: 40°C
最低工作温度: -10°C
最高表面温度: 75°C
防护等级: IP66

认证

CE认证
UKCA认证
cETLus认证

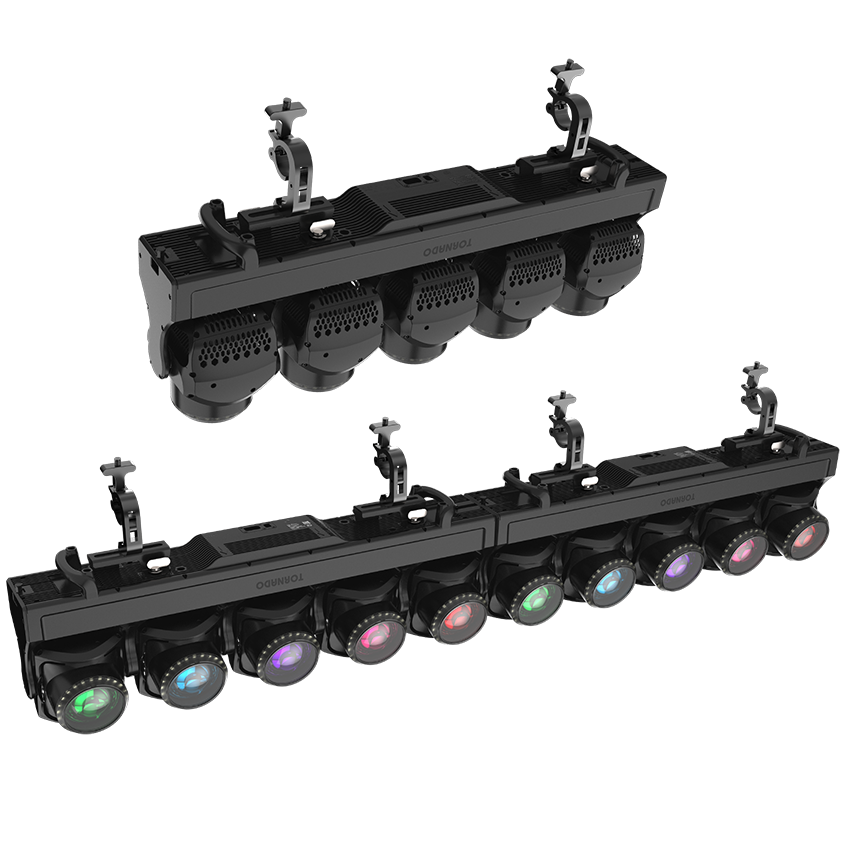

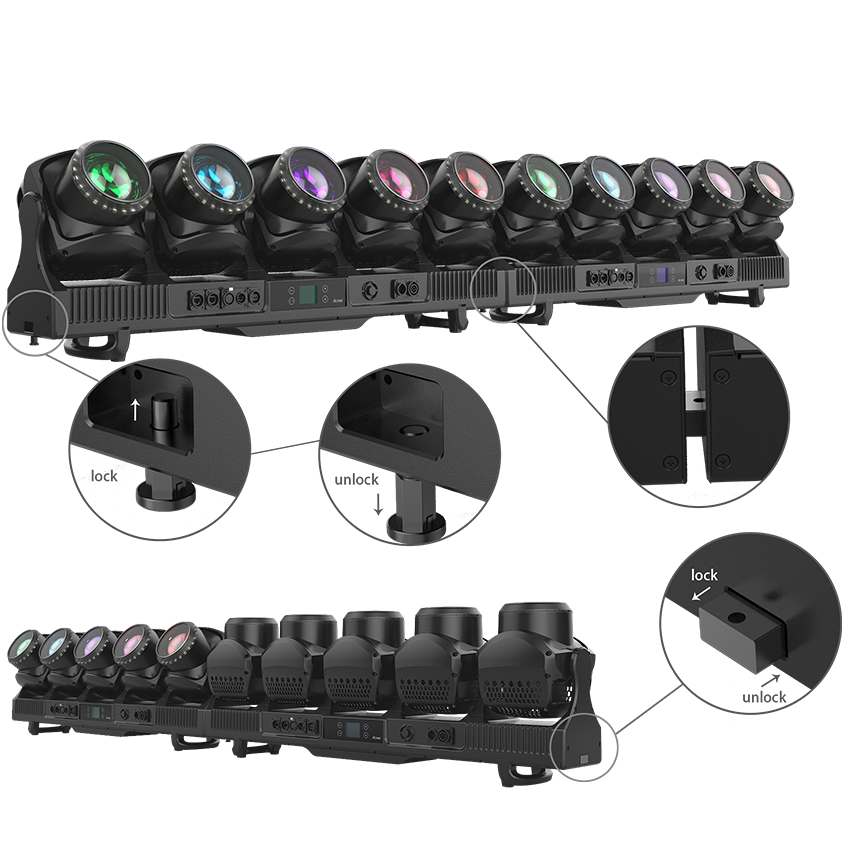

安装

可水平或垂直安装
通用的工作位置
2个快锁挂钩
保险绳连接孔

出厂配置

电子说明书
电源线
2个快锁挂钩 (63584127)

可选购配件(含配件编码)

灯钩: C-250B (2060001632-B)
保险绳: SW-05 (2060001603-E)
信号线: 3芯防水信号线(3017013468) /5芯防水信号线(3017013473)，RJ45防水信号线
飞行箱：3205001349

尺寸图

照度图

效果

Beam Angle

Field Angle

资料下载

	版本	查看	下载	更新
灯库下载
目录
TORNADO Leaflet				2025-02-28
通道表
TORNADO DMX CHART				2025-06-11
说明书
TORNADO User Manual D Version	D			2025-06-11
图纸
TORNADO Hanging Dimension				2024-03-11
TORNADO Dimension				2025-05-29
升级程序
TORNADO(TB 5 IP)-V13-83677	V13	Upgrade log		2025-06-09

展开

收起

可选配件

产品名称: TB 5 IP飞行箱

产品码: 63583548

装箱数: 2装1标准

箱重: 58 kg (191.8 lbs)

飞行箱尺寸: 1,220 x 610 x 615 mm (48.0'' x 24.0'' x 24.2'')

名称: SW-05

产品码: 2060001603-E

材质: Φ5 塑管保险绳

名称: 防水信号线

产品码: 3017013468(3芯) / 3017013473(5芯)

长度: 3m

名称: C-250B

产品码: 2060001632-B

最大承重: 250 KG

包装: 单个PE袋包装，30个一箱
