CYCLONE | ACME LIGHTING

主要特征

光束染色端: 1 x 150W RGBL LED (主光源)
频闪像素端: 24 x 0.5W RGB LEDs (外圈)

光源

20,000 小时

光源预期使用寿命

光束染色端: 3,600 lumens
万花筒效果: 4,000 lumens

灯具光通量(自动模式）

8,000K

灯具色温

2,500K-8,000K

线性CTO色温调节

4°-30°

光束角度

5°-35°

光斑角度

14°, 24°

万花筒效果

110 mm

出光镜头直径

8.5 kg (18.7 lbs)

灯具重量

功能概述

ACME CM 150 IP 是一款多功能摇头灯，灵感源自畅销产品龙卷风 TB 5 IP，它将光束、染色、像素效果与无极运转融于一体，为舞台赋予无限可能。

中心光源搭载了 150W RGBL LED，可释放 3600 流明的光通量，拥有万花筒效果，在空中营造出鲜明的网格状光影纹理。中心光束外圈环绕着 24 颗 0.5W RGB LED 灯珠，输出1500 流明光通量，可实现动态像素效果与震撼的频闪效果。

灯具具备灵活的缩放角度，搭配线性调焦系统可实现角度的无缝过渡。配合灯头的X轴无极运转角度、Y轴运转角度220°及60°的滚轮角度，使灯具能够实现快速而富有动感的运动效果，精准覆盖舞台每个角落。

IP66高防护等级，适用于各类场景 —— 无论是巡回演出、现场活动，还是户外音乐节与建筑照明，CM 150 IP 均可从容应对。

产品视频

技术参数

型号

产品型号: CYCLONE
Model Code: CM 150 IP

T/CETA001-2021标准型号

XG-LED162C4/D66

光源

光源:
- 光束染色端: 1 x 150W RGBL LED (主光源)
- 频闪像素端: 24 x 0.5W RGB LEDs (外圈)
灯具光通量:
- 自动模式:
- - 光束染色端: 3,600 lumens
  - 万花筒效果: 4,000 lumens
- 安静模式:
- - 光束染色端: 2,800 lumens
  - 万花筒效果: 3,000 lumens
- 超安静模式:
- - 光束染色端: 2,500 lumens
  - 万花筒效果: 2,600 lumens
灯具色温: 8,000K
光源预期使用寿命: 20,000小时*
*数据由光源供应商提供

光学系统

光束角度: 4°-30°
光斑角度: 5°-35°

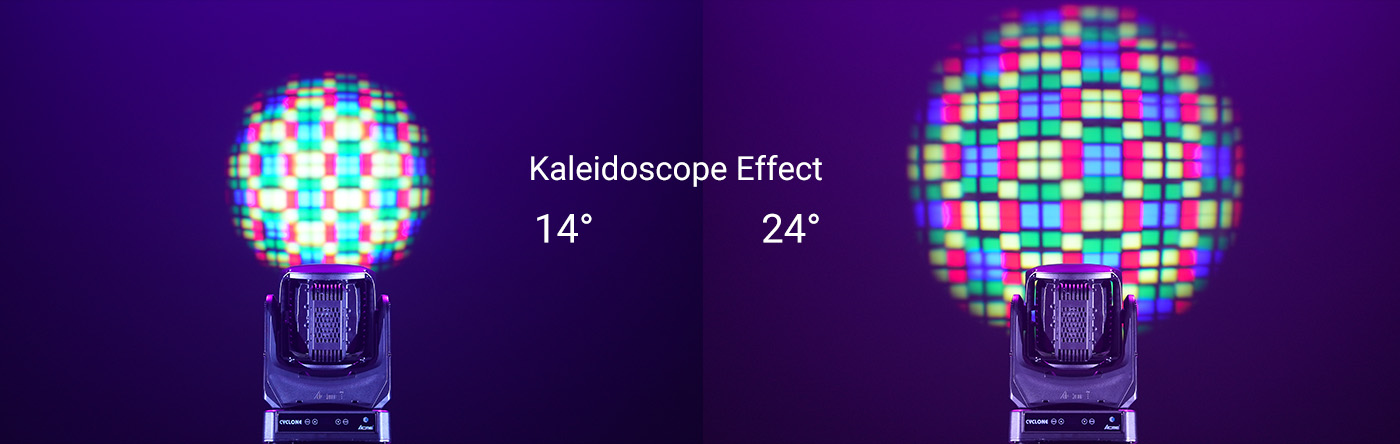

万花筒效果: 14°, 24°
出光镜头直径: 110 mm

控制与程序

4 个触摸按键
控制面板: OLED显示屏
操作模式: DMX模式
控制协议: DMX512，RDM，Art-Net，sACN，NFC
DMX 通道模式: 3
控制通道: 27/50/58
软件升级: 通过DMX连接升级软件

X轴/Y轴

Y轴运转角度: 220°
X轴无极转: 无极转
滚轮: 60°
X轴/Y轴位置失步自动校正
X轴/Y轴精度扫描: 16 bit
固定锁: 水平/垂直锁

颜色盘

线性CTO色温调节: 2,500K-8,000K

其他效果

多种速度频闪效果
0-100%顺滑调光
线性调焦系统
卓越的色彩宏效果
卓越的混色效果

电气与接口

输入电压范围: 100-240Vac; 50/60Hz
功率: 260W
电源插座: 防水电源连接器输入/输出

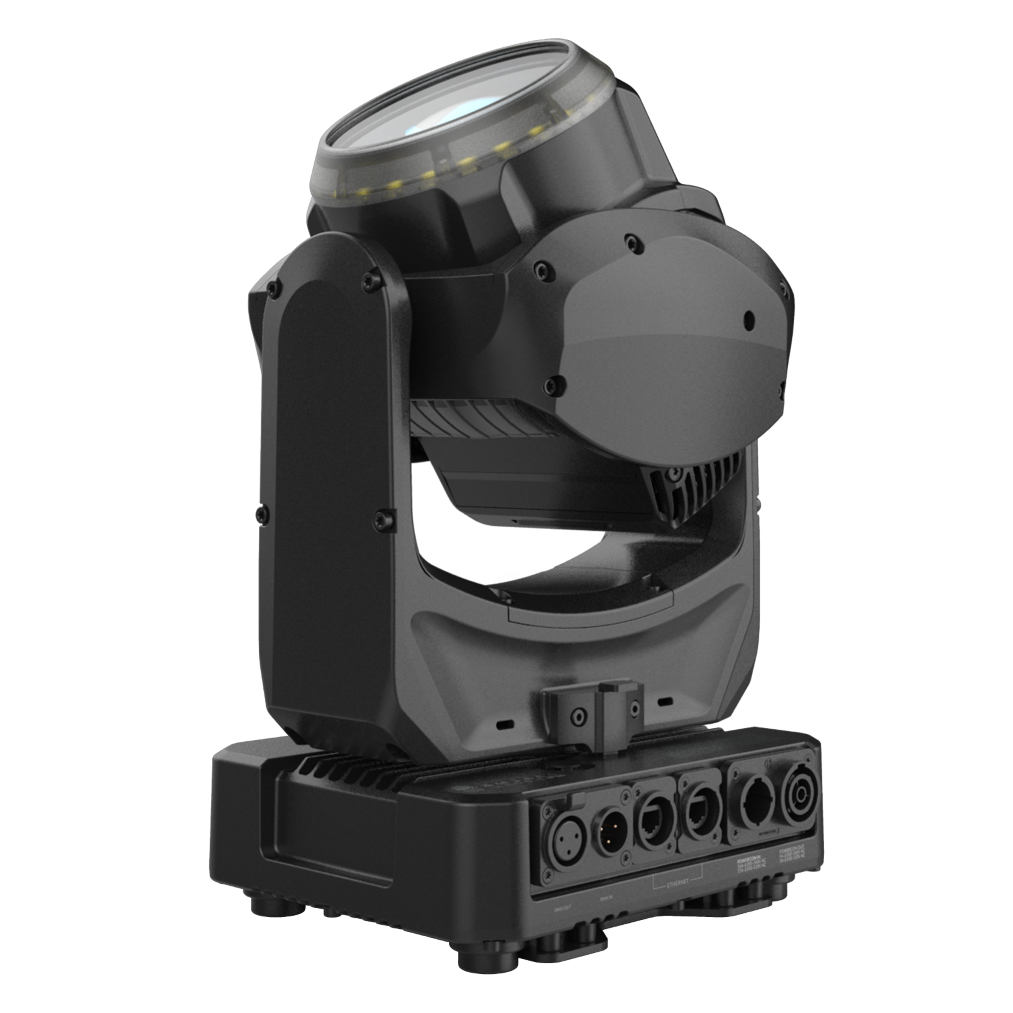

信号输入/输出: 3芯或5芯防水卡侬头插座，RJ45插座

灯具规格

灯具尺寸:
- 宽: 235 mm (9.3")
- 深: 192 mm (7.6")
- 高: 363 mm (14.3")
- 净重: 8.5 kg (18.7 lbs)

包装规格

飞行箱尺寸:
- 宽: 1,170 mm (46.1")
- 深: 580 mm (22.8")
- 高: 640 mm (25.2")
- 重量: 119 kg (262.4 lbs) (含飞行箱, 6装1标准)
纸箱尺寸:
- 宽: 330 mm (13.0")
- 深: 315 mm (12.4")
- 高: 520 mm (20.5")
- 重量: 11.0 kg (24.3 lbs) (含纸箱, 1装1标准)

工作环境

最高环境温度: 45°C
最低工作温度: -20°C
最高表面温度: 75°C
防护等级: IP66

噪音数据

自动模式: 50 dB(A) @ 1 m
安静模式: 36 dB(A) @ 1 m
超安静模式: 35 dB(A) @ 1 m

认证

CE认证
UKCA认证
cETLus认证

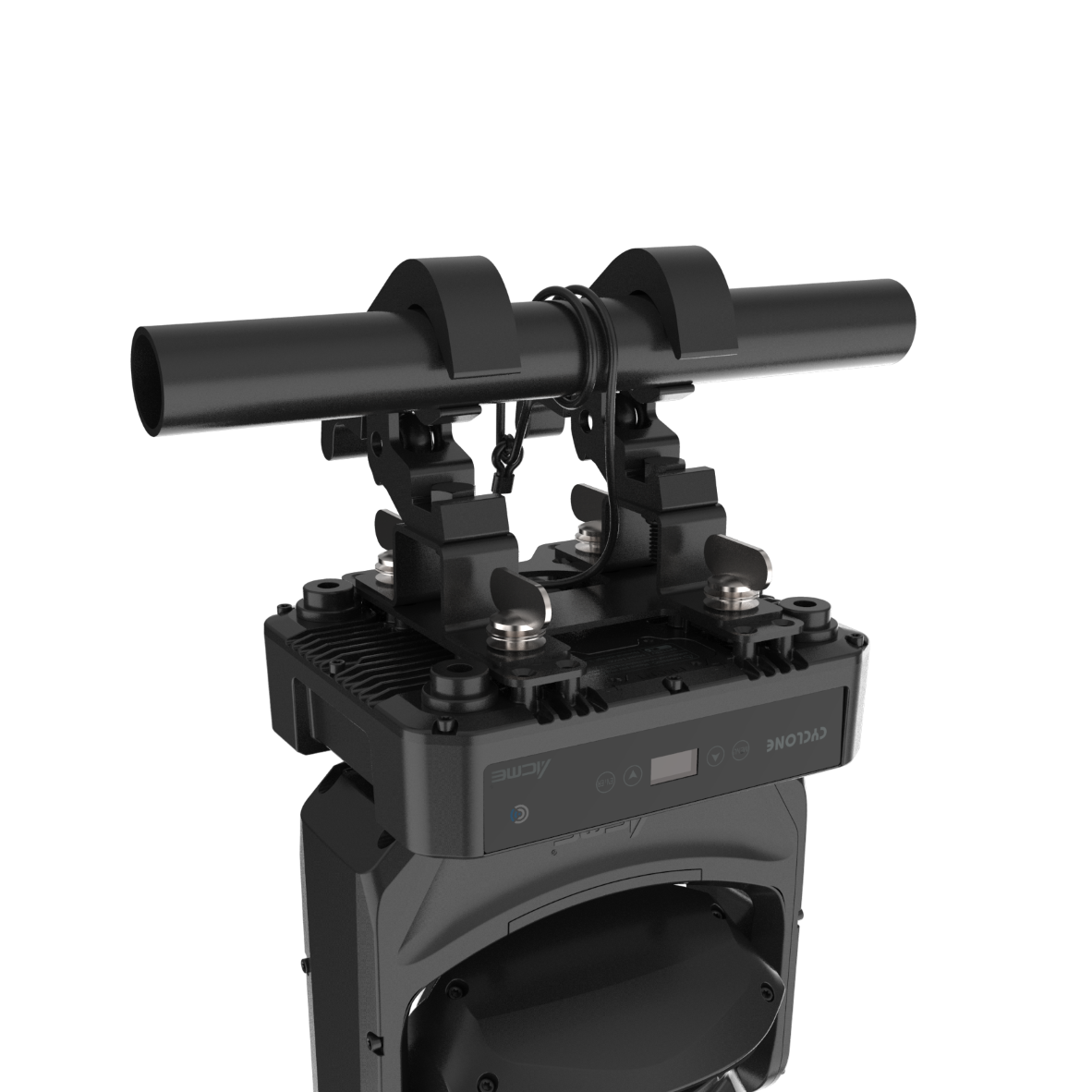

安装

通用的工作位置
2个快锁挂钩
保险绳连接孔

出厂配置

电子说明书
电源线
2个快锁挂钩(3002003002)

可选购配件(含配件编码)

灯钩: C-150B (2060001625-C)
保险绳: SW-05 (2060001603-E)
信号线: 3芯防水信号线(3017013468) /5芯防水信号线(3017013473)

尺寸图

照度图

效果

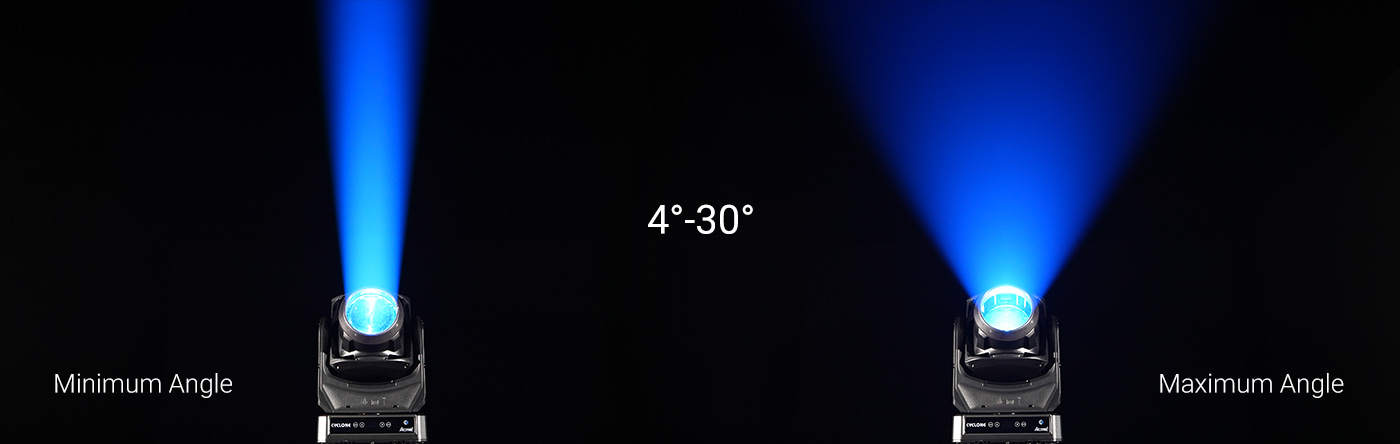

Beam Angle

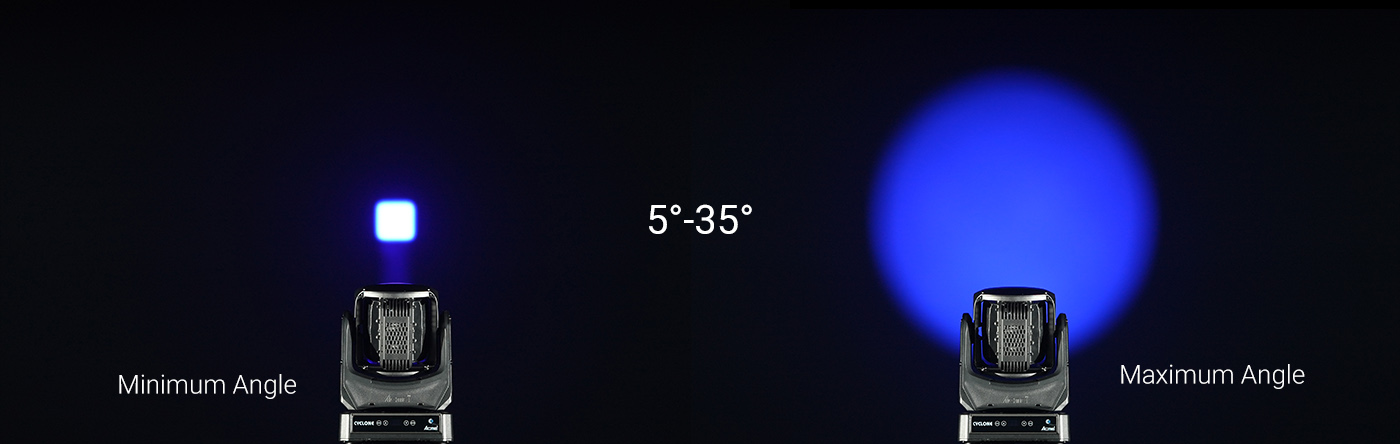

Field Angle

资料下载

	版本	查看	下载	更新
灯库下载

展开

收起

可选配件

产品名称: CM 150 IP飞行箱

产品码: 63584349

装箱数: 6装1 标准

箱重: 56.0 kg (123.5 lbs)

飞行箱尺寸: 1,170 x 580 x 640 mm (46.1'' x 22.8'' x 25.2'')

名称: SW-05

产品码: 2060001603-E

材质: Φ5 塑管保险绳

名称: 防水信号线

产品码: 3017013468(3芯) / 3017013473(5芯)

长度: 3m

名称: C-150B

产品码: 2060001625-C

最大承重: 250 kg

包装: 单个PE袋包装，30个一箱
