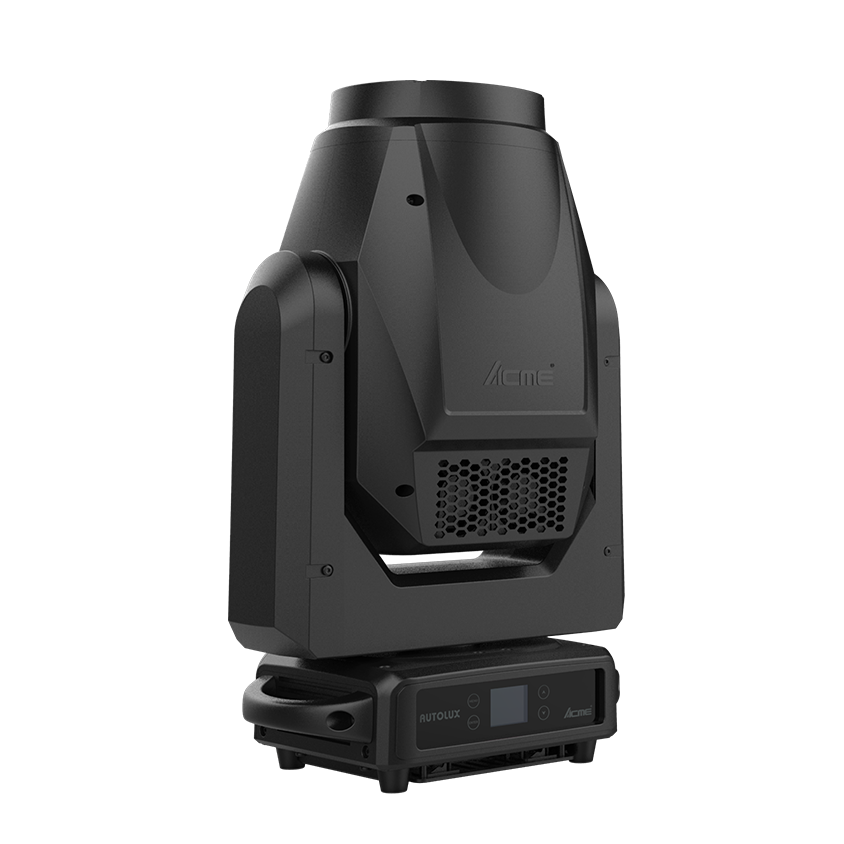

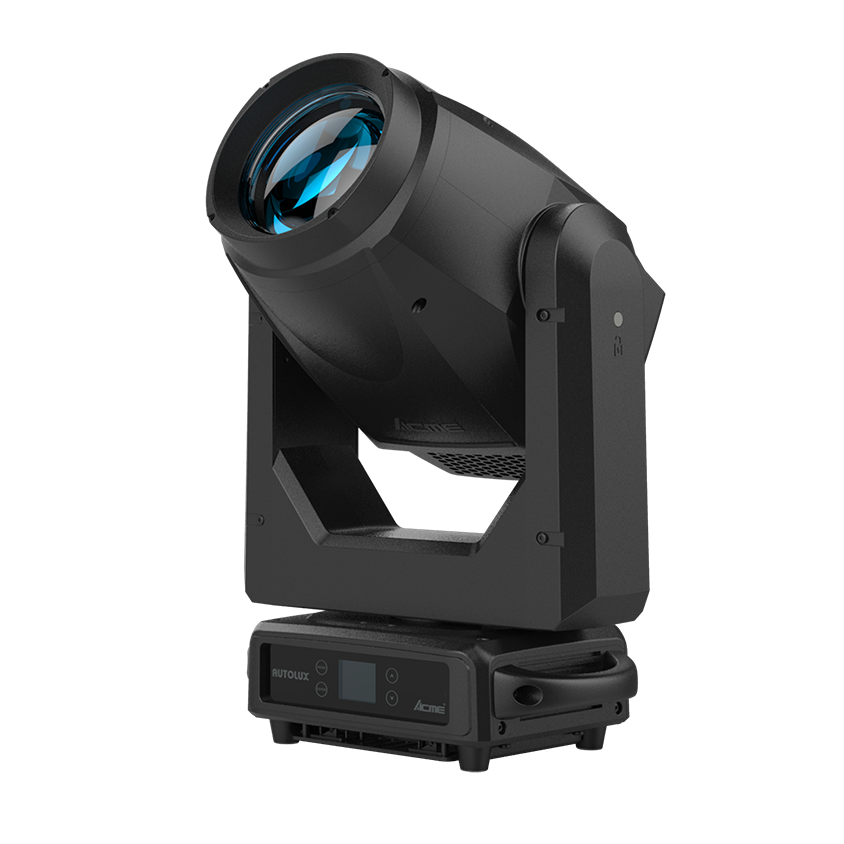

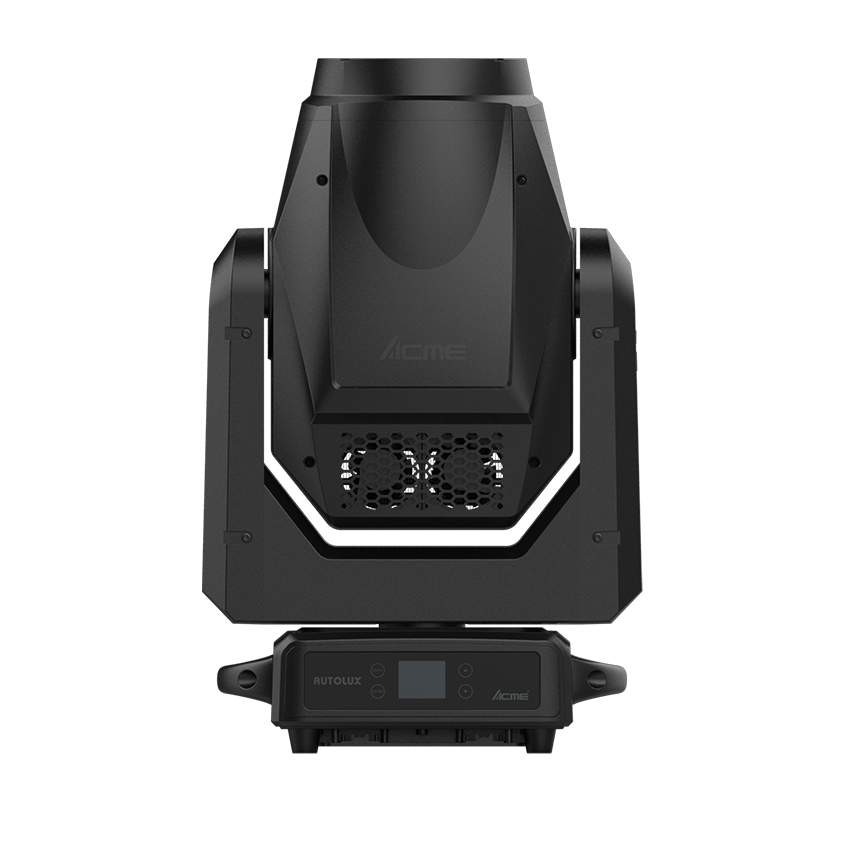

AUTOLUX | ACME LIGHTING

主要特征

600W LED光引擎

光源

20,000 小时

光源预期使用寿命

180 mm

出光镜头直径

2,700K – 6,200K

灯具色温

22,000 lumens (超功率模式)

灯具光通量

18,000 lumens (自动模式)

灯具光通量

14,000 lumens (安静模式)

灯具光通量

180 mm

出光镜头直径

22.0 kg (48.5 lbs)

灯具重量

功能概述

ACME AUTO 600 搭载了600瓦LED光引擎，150 mm的出光镜头能够释放出24,000流明光通量，为您带来非凡的照明体验。变焦范围从11°到42°，搭配灵活的XY轴旋转角度，能够精准定位光线，实现精确的光束控制。

Ra＞90的高显色指数，能够精准呈现自然色彩。切割模块能够正负旋转60°，使用四个刀片进行快速、精确的切割。1个颜色盘搭配线性CTO色温调节，灯具可实现多种创意表达。

灯具拥有场景锁定功能，可锁定灯具光斑位置、大小及切割形状，断电后再次通电时, 不需等待灯具重新复位时间，通电即刻原地复现场景。

AUTO 600 能够满足车展、走秀等各种流动演出市场的面光需求，是灯光师的又一专业选择！

技术参数

型号

产品型号: AUTOLUX
Model Code: AUTO 600

T/CETA001-2021标准型号

P-LED600BG/D20

光源

光源: 600W LED光引擎
灯具光通量:
- 超功率模式: 22,000 lumens
- 自动模式: 18,100 lumens
- 静音模式: 14,000 lumens
灯具色温: 6,200K
光源预期使用寿命: 20,000小时*
*数据由光源供应商提供

光学系统

缩放角度: 11°-42°
显色指数: Ra>90
出光镜头直径: 150 mm

控制与程序

4 个触摸按键
控制面板: LCD显示屏
控制协议: DMX512，RDM
DMX 通道模式: 1
控制通道: 25
软件升级: 通过DMX或者USB连接升级软件

X轴/Y轴

X轴运转角度: 540°
Y轴运转角度: 270°
X轴/Y轴精度扫描: 16 bit

颜色盘

线性CTO色温调节: 2,700K-6,200K
1个颜色盘:
- 6种颜色+白色
- 序号6色片可更换

雾化片

1片雾化片

切割系统

切割片: 4片切割片实现快速、平滑切割, 每片切割片方向及角度可以独立控制
旋转: 单片可完整闭光, 整个切割模块可以旋转±60°

其他效果

多种速度频闪效果
0-100%顺滑调光
场景锁定功能
XY轴锁定解除按钮, 方便灯具收纳运输

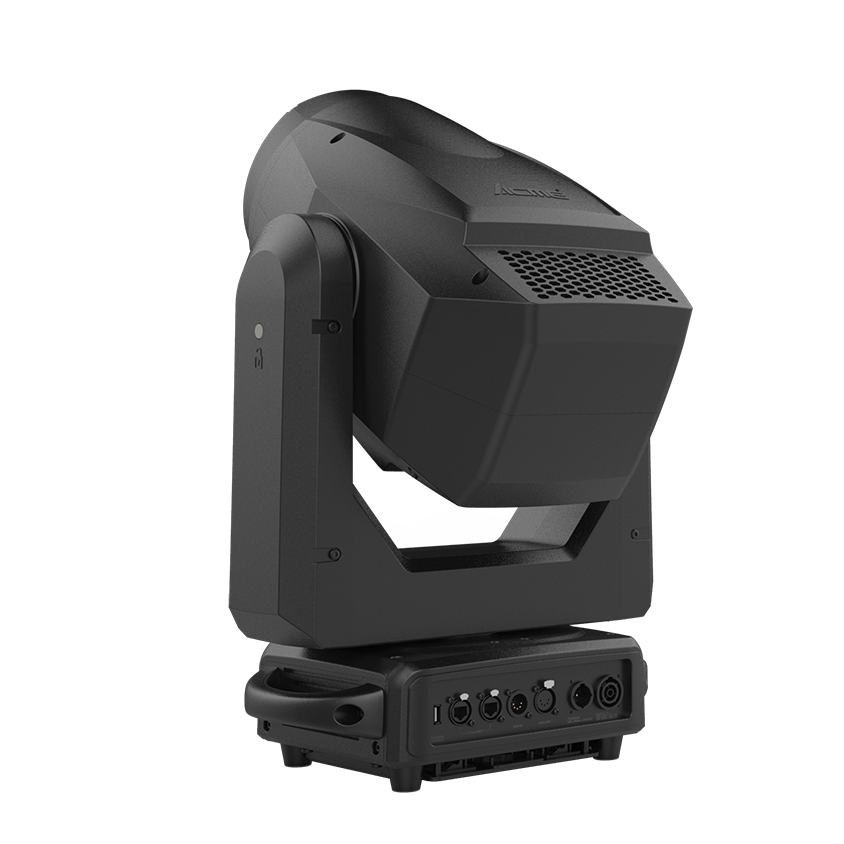

电气与接口

输入电压范围: 180-240Vac; 50/60Hz
功率: 835W
电源插座: 电源连接器输入/输出
信号输入/输出: 3芯或5芯卡侬头插座

灯具规格

灯具尺寸:
- 宽: 376 mm (14.8")
- 深: 236 mm (9.3")
- 高: 592 mm (23.3")
- 净重: 22.0 kg (48.5 lbs)

包装规格

飞行箱尺寸:
- 宽: 940 mm (37.0")
- 深: 580 mm (22.8")
- 高: 775 mm (30.5")
- 重量: 96 kg (211.6 lbs) (含飞行箱, 2装1标准)
纸箱尺寸:
- 宽: 510 mm (20.1")
- 深: 485 mm (19.1")
- 高: 675 mm (26.6")
- 重量: 28.0 kg (61.7 lbs) (含纸箱, 1装1标准)

工作环境

最高环境温度: 45°C
最低工作温度: -10°C
最高表面温度: 70°C
防护等级: IP20

噪音数据

超功率模式: 50 dB(A) @ 1 m
自动模式: 41 dB(A) @ 1 m
安静模式: 35 dB(A) @ 1 m

认证

CE认证
UKCA认证

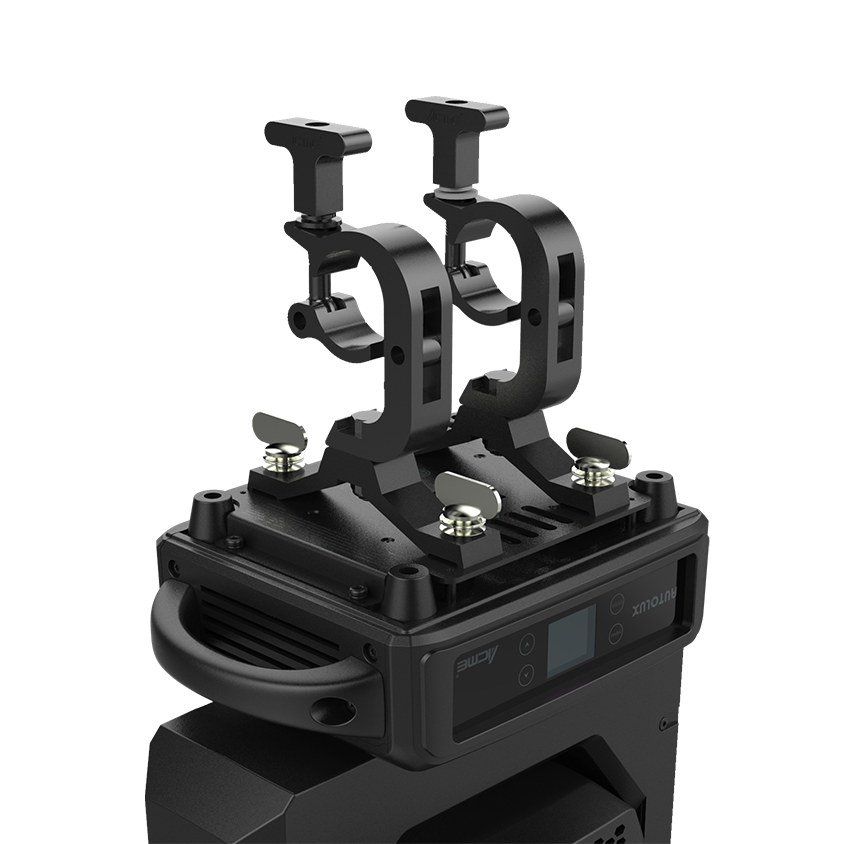

安装

通用的工作位置
1对折叠灯钩, 适用于直径50mm的灯架
保险绳连接孔

出厂配置

电子说明书
电源线
1对折叠灯钩, 适用于直径50mm的灯架

可选购配件(含配件编码)

灯钩: C-250B (2060001632-B)
保险绳: SW-05 (2060001603-E)
信号线: 3芯或5芯信号线

尺寸图

照度图

效果

颜色盘

线性CTO色温调节

3027002443

2,700K-6,200K

颜色盘: 6种颜色+白色

红色
3027005190
序号 1

绿色
3027005189
序号 2

粉红色
3027005188
序号 3

橙色
3027005187
序号 4

蓝色
3027005186
序号 5

深蓝色
3027002461
序号 6

棱镜/雾化片

1片雾化片

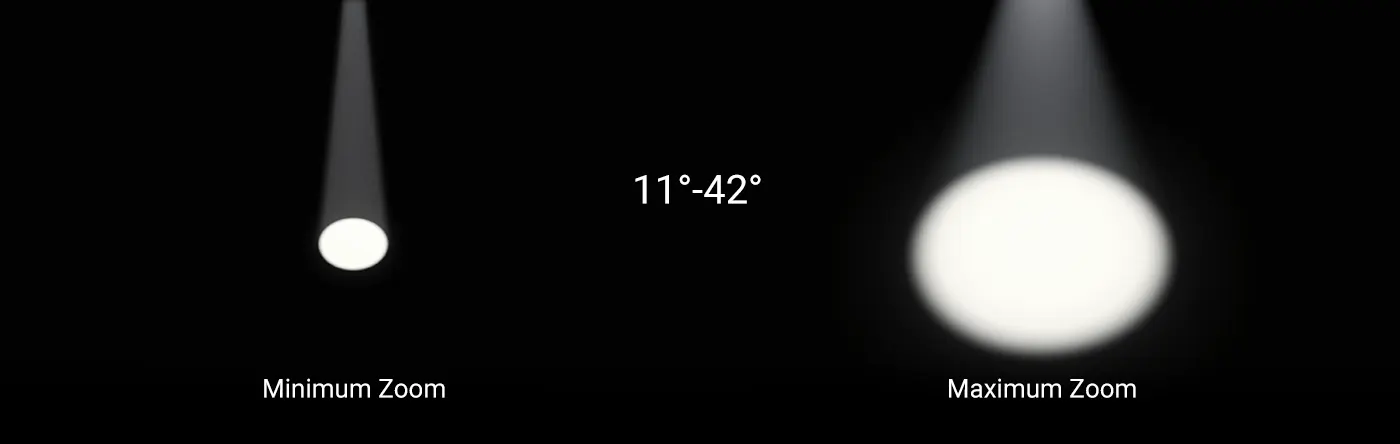

缩放角度

切割系统

4片切割片实现快速、平滑切割，每片切割片方向及角度可以独立控制；

单片可完整闭光, 整个切割模块可以旋转±60°

资料下载

	版本	查看	下载	更新
灯库下载

展开

收起

可选配件

名称: SW-05

产品码: 2060001603-E

材质: Φ5 塑管保险绳

名称: XLR 信号线
