PULSAR PLUS S2 | ACME LIGHTING

主要特征

光束染色端：4 x 150W RGBL LEDs
像素频闪端：160 x 3W CW LEDs
像素频闪端：192 x 0.5W RGB LEDs
10W光束端：16 x 10W CW LEDs

光源

光束染色端: 3.5°-24°
像素端: 115°
频闪端: 108°
10W光束端: 3.5°

光束角度

光束染色端: 10,500 lumens
像素RGB端: 3,800 lumens
频闪端: 28,500 lumens
10W光束端: 2,700 lumens

灯具光通量

8,000K

灯具色温

20,000 小时

光源预期使用寿命

20.5 kg (45.2 lbs)

灯具重量

功能概述

ACME CM S2 IP 是CM S2的进化升级版，它不仅亮度更高、具备IP66防护等级，还带来了更多创意可能。灯具的双面灯头设计融合了光束、染色、频闪及像素效果，并支持XY轴无极运转。

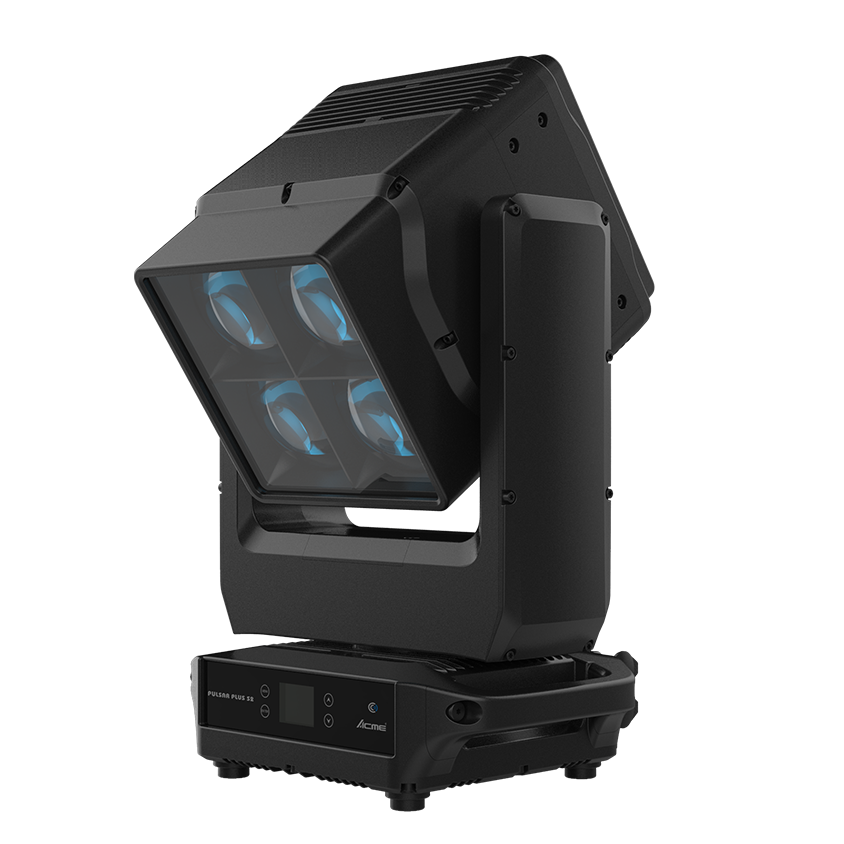

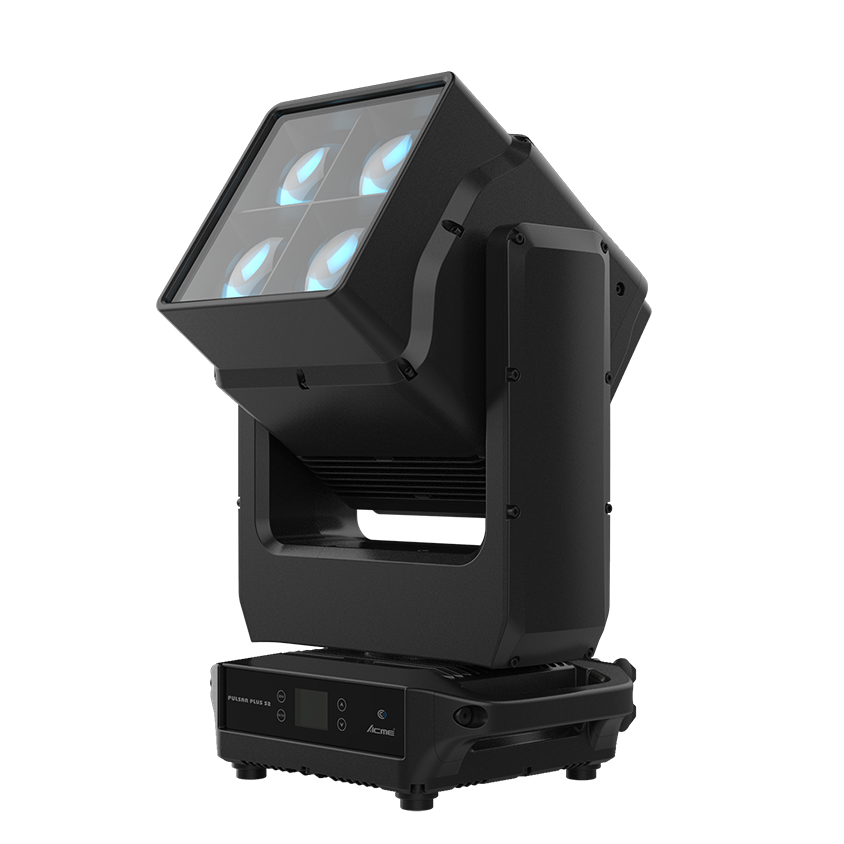

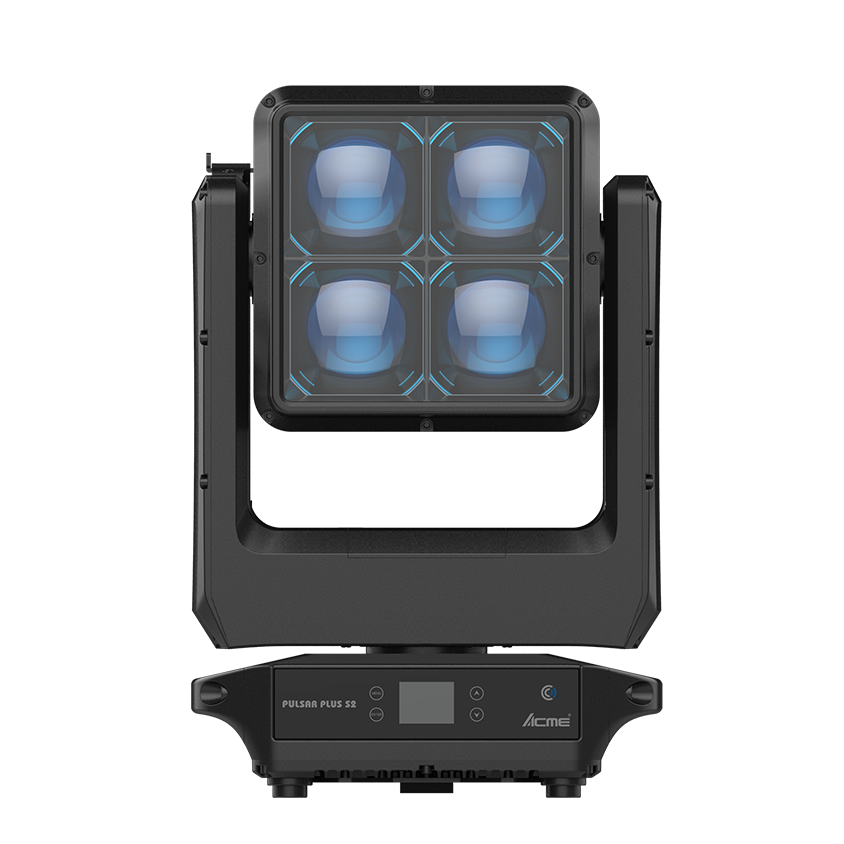

灯具的前部具有光束、染色效果，配备四颗150W RGBL LED，电动变焦范围为3.5°至24°，可输出高达10,500流明的惊人光通量。镜头由一块高清镀膜防尘透镜覆盖，提升光的穿透力同时减少设备维护成本。

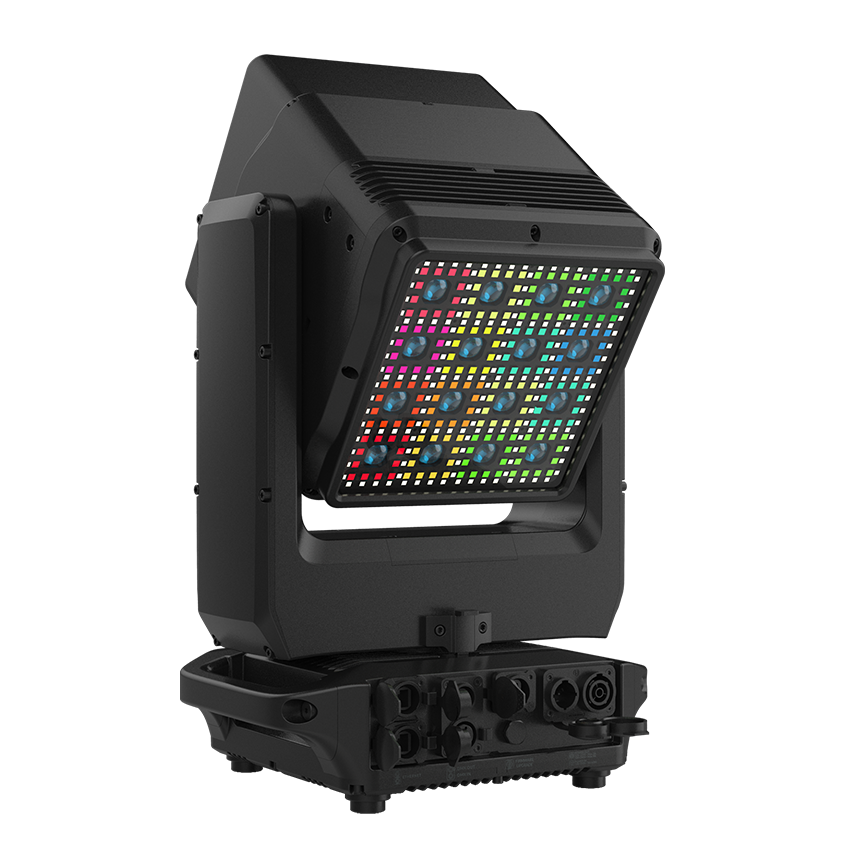

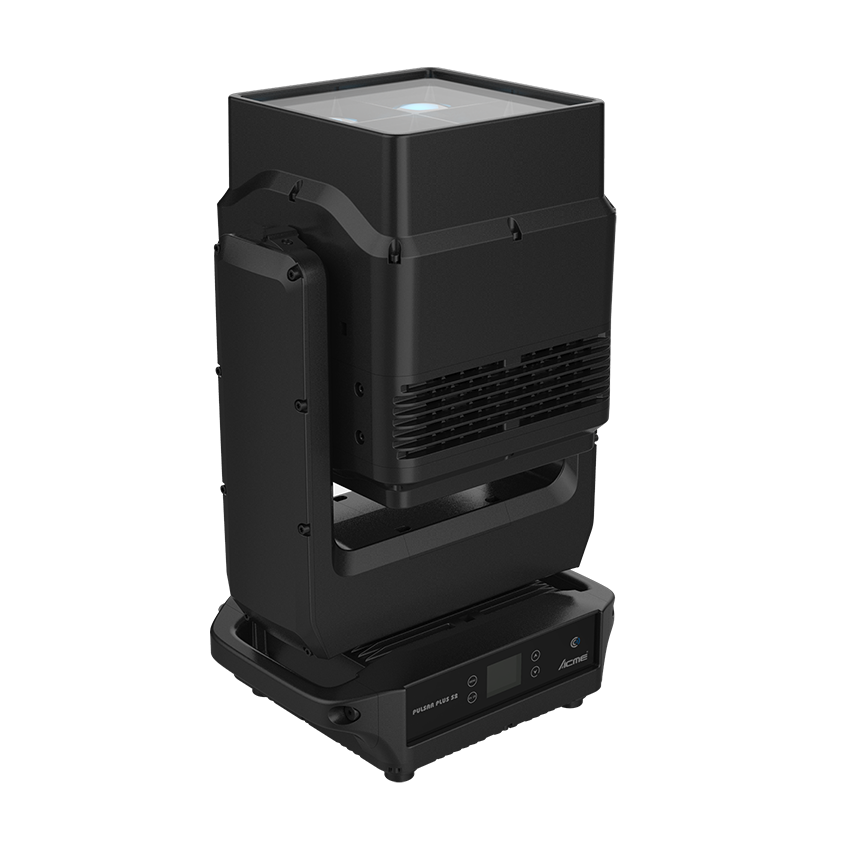

灯具背部则具有像素、频闪效果 (搭载160颗3W冷白LED与192颗0.5W RGB LED) 以及光束效果 (配备16颗10W冷白LED) 。为拓展创意空间，CM S2 IP还搭载了ACME专利的电子雾化系统，可同时应用于像素区域与10W光束区域，实现从锐利光束到柔和光效的无缝过渡。

CM S2 IP凭借丰富的创意潜力与IP66高防护等级，将成为各种室内外大型演出活动的理想选择。

产品视频

技术参数

型号

产品型号: PULSAR PLUS S2
Model Code: CM S2 IP

T/CETA001-2021标准型号

XG-LED1336C4/D66

光源

光源:
- 光束染色端: 4 x 150W RGBL LEDs
- 像素频闪端: 160 x 3W CW LEDs
- 像素频闪端: 192 x 0.5W RGB LEDs
- 10W光束端: 16 x 10W CW LEDs
灯具光通量:
- 自动模式:
- - 光束染色端光通量: 10,500 lumens
  - 像素RGB端光通量: 3,800 lumens
  - 频闪端光通量: 28,500 lumens
  - 10W光束端光通量: 2,700 lumens
- 安静模式:
- - 光束染色端光通量: 5,400 lumens
  - 像素RGB端光通量: 2,600 lumens
  - 频闪端光通量: 18,000 lumens
  - 10W光束端光通量: 1,200 lumens
- 超安静模式:
- - 光束染色端光通量: 3,900 lumens
  - 像素RGB端光通量: 900 lumens
  - 频闪端光通量: 6,500 lumens
  - 10W光束端光通量: 400 lumens
灯具色温: 8,000K
光源预期使用寿命: 20,000小时*
*数据由光源供应商提供

光学系统

光束角度:
- 光束染色端: 3.5°-24°
- 像素端: 115°
- 频闪端: 108°
- 10W光束端: 3.5°

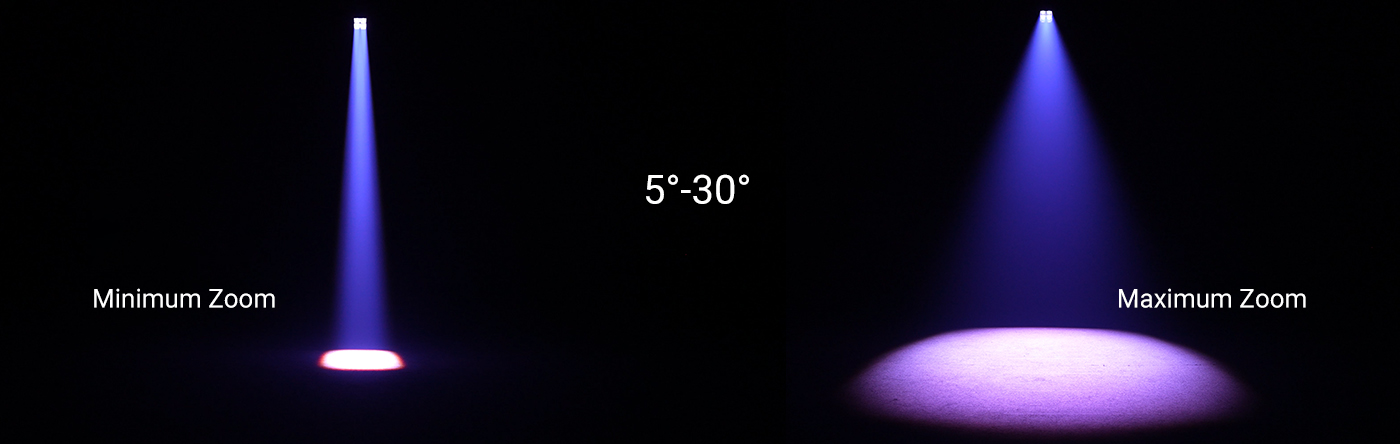

光斑角度:
- 光束染色端: 5°-30°

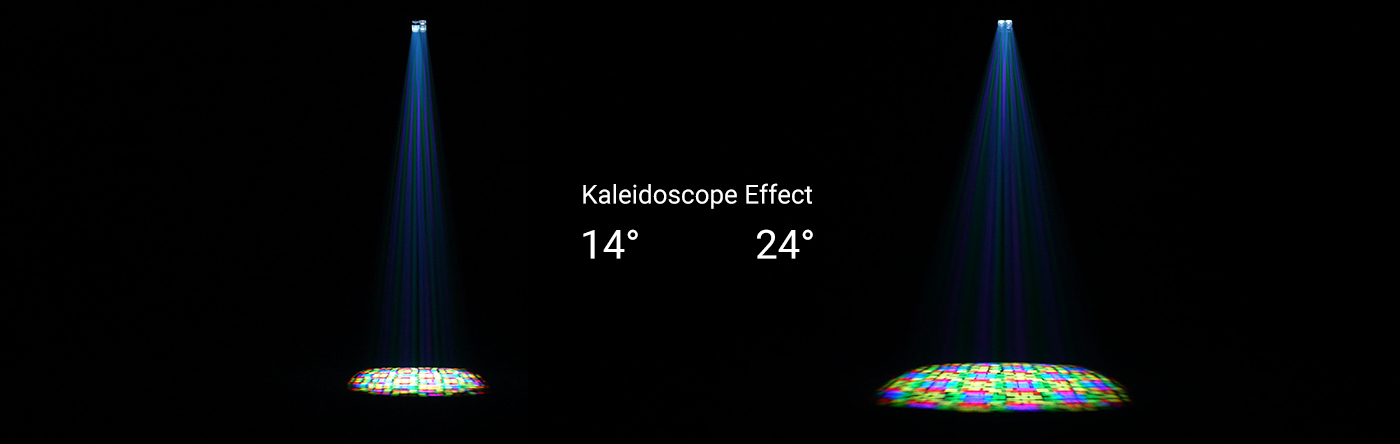

- 万花筒效果: 14°, 24°
电子雾化系统:
- 专利号:
- - CN216010577U
  - US11698183B1
  - DE202023101966U1
  - FR3134870B3

控制与程序

4 个触摸按键
控制面板: LCD显示屏
控制协议: DMX512，RDM，Art-Net，sACN，NFC
DMX 通道模式: 5
控制通道: 43/153/163/195/27+168
软件升级: 通过DMX或者USB连接升级软件

X轴/Y轴

X轴无极转: 无极转
Y轴无极转: 无极转
X轴/Y轴位置失步自动校正
X轴/Y轴精度扫描: 16 bit
固定锁: 水平/垂直锁

颜色盘

线性CTO色温调节: 2,500K-8,000K

其他效果

多种速度频闪效果
0-100%顺滑调光
电动调焦系统
卓越的色彩宏效果

电气与接口

输入电压范围: 100-240Vac; 50/60Hz
功率: 1,150W
电源插座: 防水电源连接器输入/输出
信号输入/输出: 3芯或5芯防水卡侬头插座，RJ45插座

灯具规格

灯具尺寸:
- 宽: 310 mm (12.2")
- 深: 228 mm (9.0")
- 高: 496 mm (19.5")
- 净重: 20.5 kg (45.2 lbs)

包装规格

飞行箱尺寸:
- 宽: 1,000 mm (39.4")
- 深: 610 mm (24.0")
- 高: 785 mm (30.9")
- 重量: 149 kg (328.5 lbs) (含飞行箱, 4装1标准)
纸箱尺寸:
- 宽: 405 mm (15.9")
- 深: 385 mm (15.2")
- 高: 660 mm (26.0")
- 重量: 24.5 kg (54.0 lbs) (含纸箱, 1装1标准)

工作环境

最高环境温度: 45°C
最低工作温度: -20°C
最高表面温度: 70°C
防护等级: IP66

噪音数据

自动模式: 49 dB(A) @ 1 m
安静模式: 38 dB(A) @ 1 m
超安静模式: 35 dB(A) @ 1 m

认证

CE认证
UKCA认证
cETLus认证

安装

可水平或垂直安装

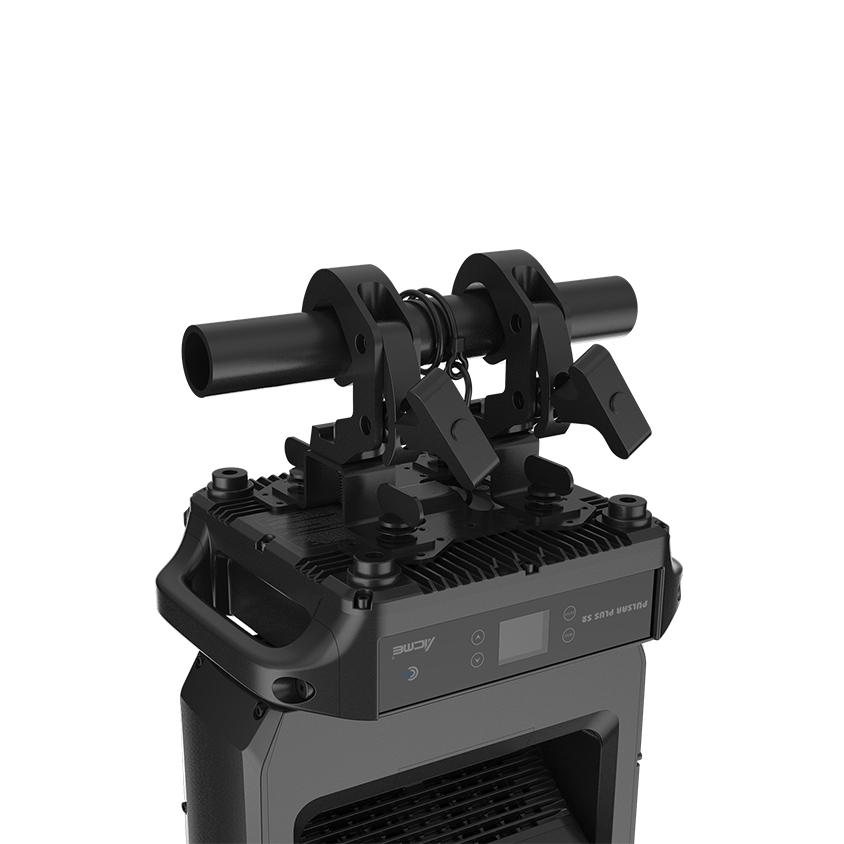

1对折叠灯钩, 适用于直径50mm的灯架
保险绳连接孔

出厂配置

电子说明书
电源线
1对折叠灯钩, 适用于直径50mm的灯架

可选购配件(含配件编码)

灯钩: C-250B (2060001632-B)
保险绳: SW-05 (2060001603-E)
信号线: 3芯防水信号线(3017013468) /5芯防水信号线(3017013473)

尺寸图

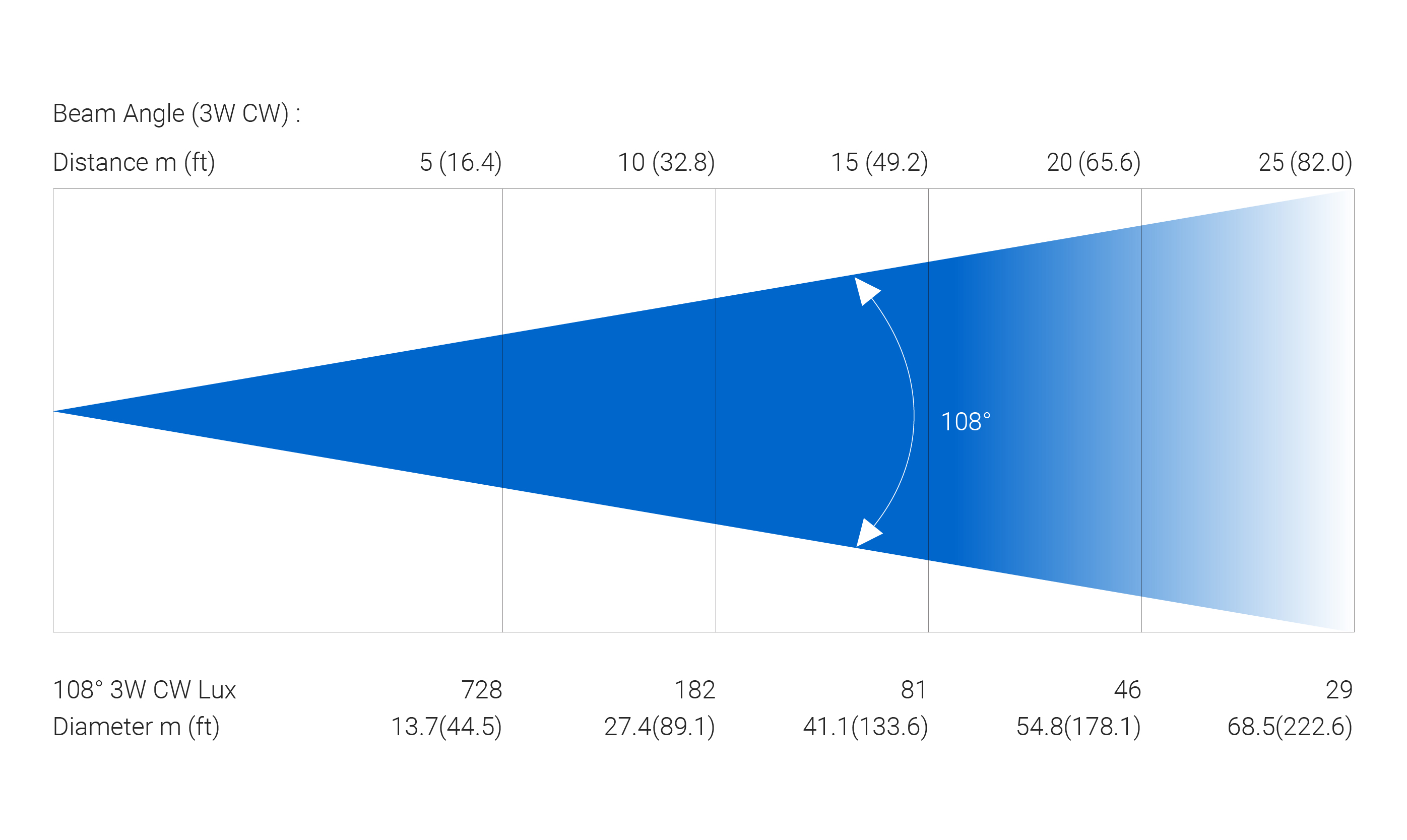

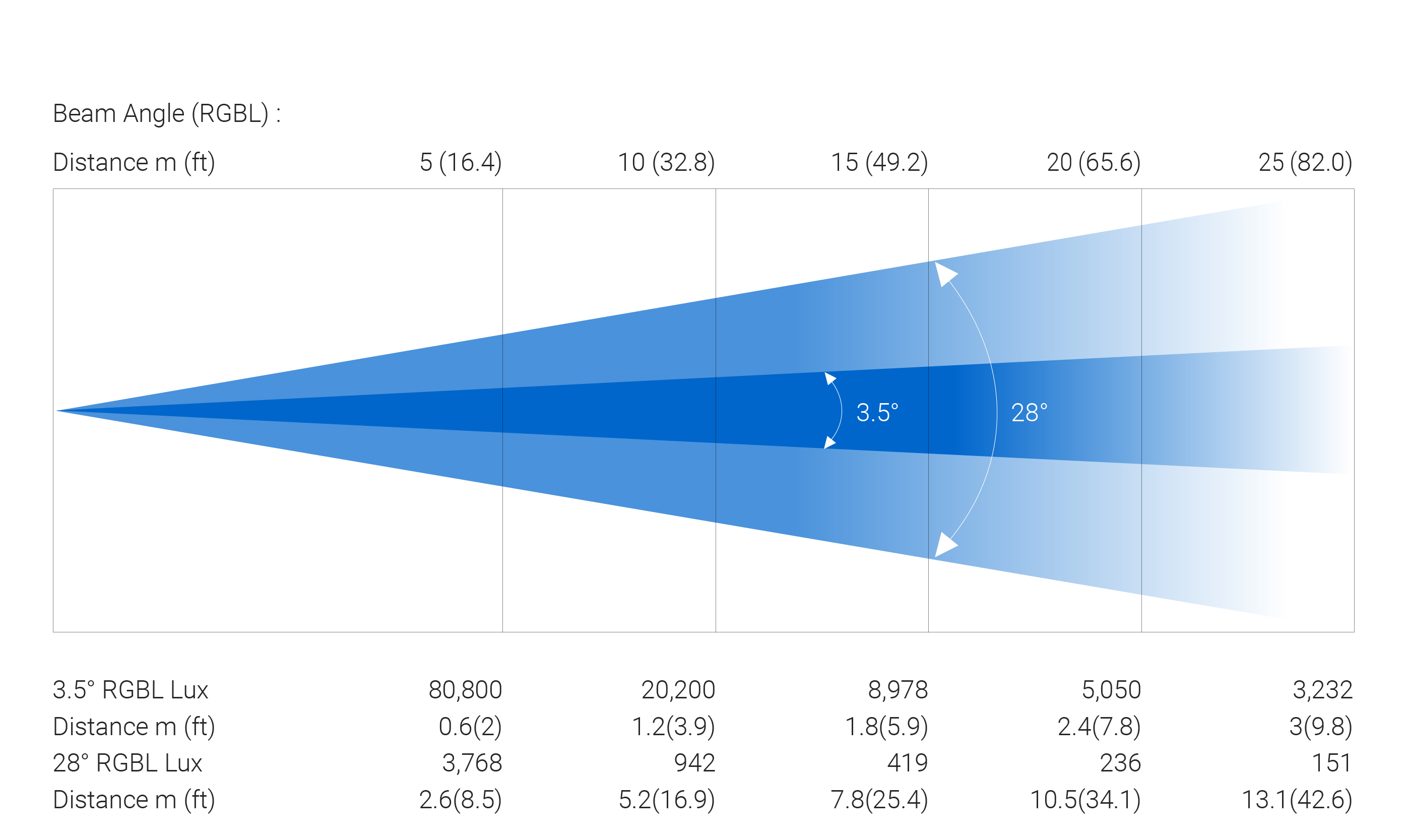

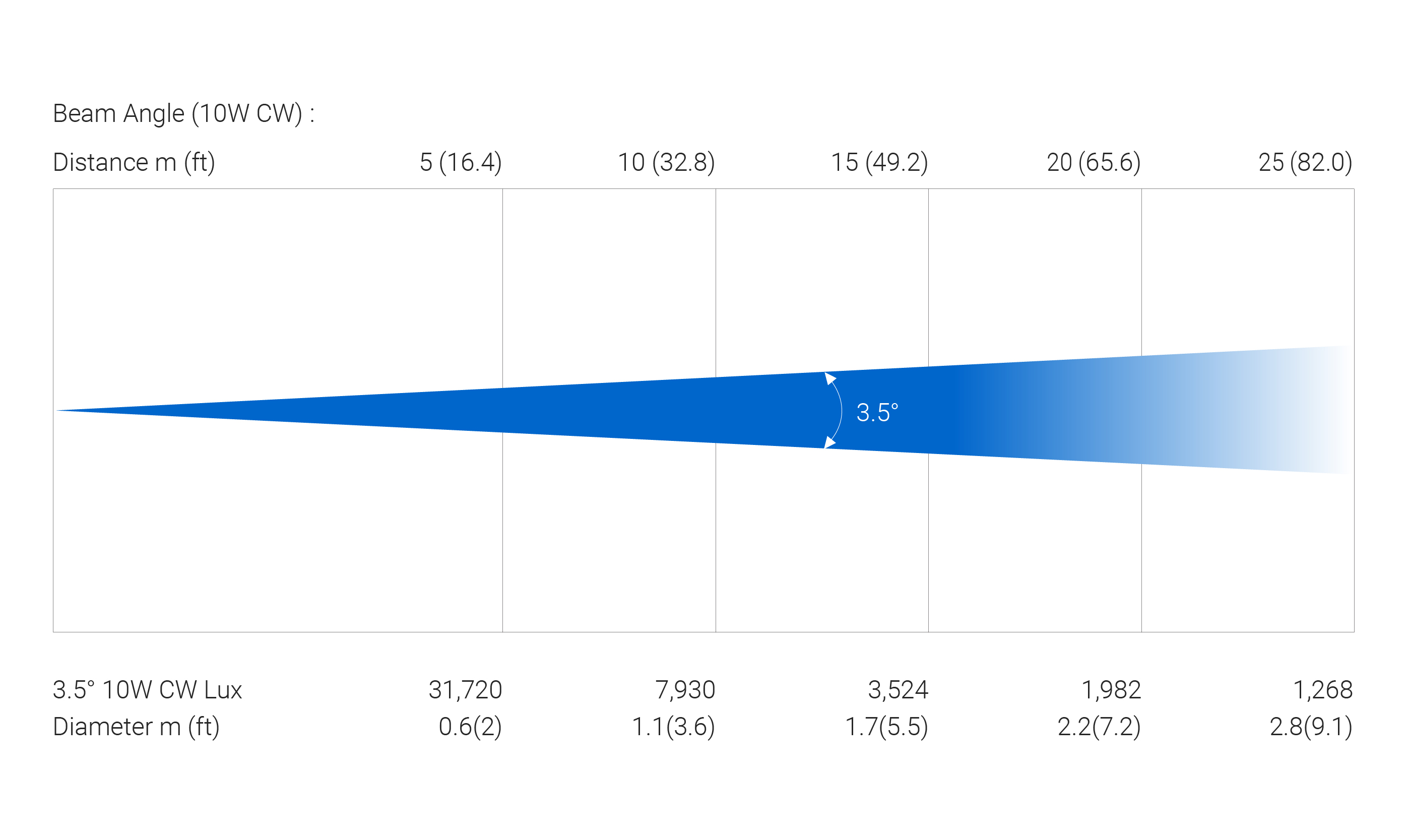

照度图

效果

Beam Angle

Field Angle

资料下载

	版本	查看	下载	更新
灯库下载

展开

收起

可选配件

名称: SW-05

产品码: 2060001603-E

材质: Φ5 塑管保险绳

名称: 防水信号线

产品码: 3017013468(3芯) / 3017013473(5芯)

长度: 3m

名称: C-250B

产品码: 2060001632-B

最大承重: 250 KG

包装: 单个PE袋包装，30个一箱
