BIG BANG | ACME LIGHTING

主要特征

441 x 0.2W RGB LED

光源

20,000 小时

光源预期使用寿命

60°

光束角度

116°

光斑角度

4.5 kg (9.9 lbs)

灯具重量

功能概述

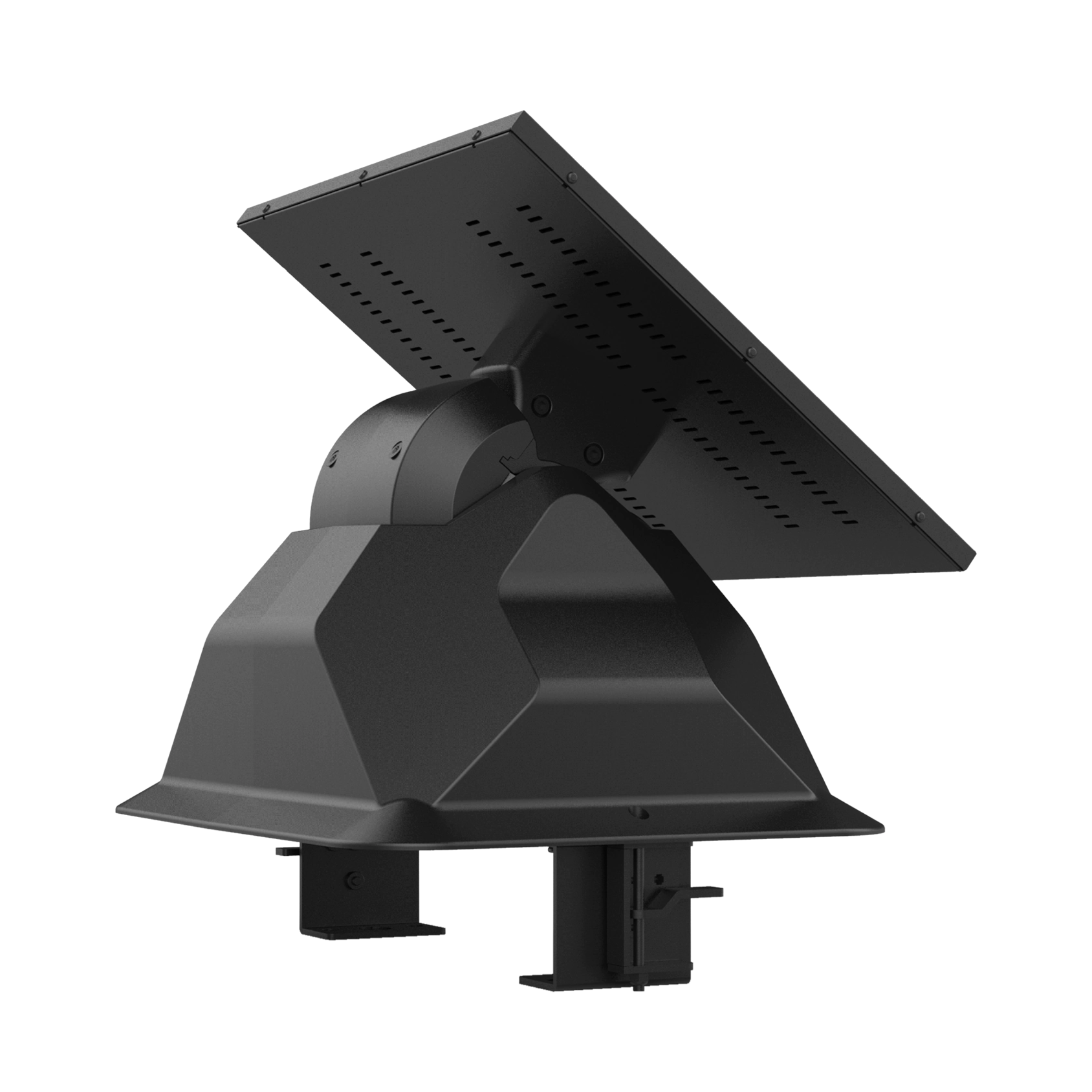

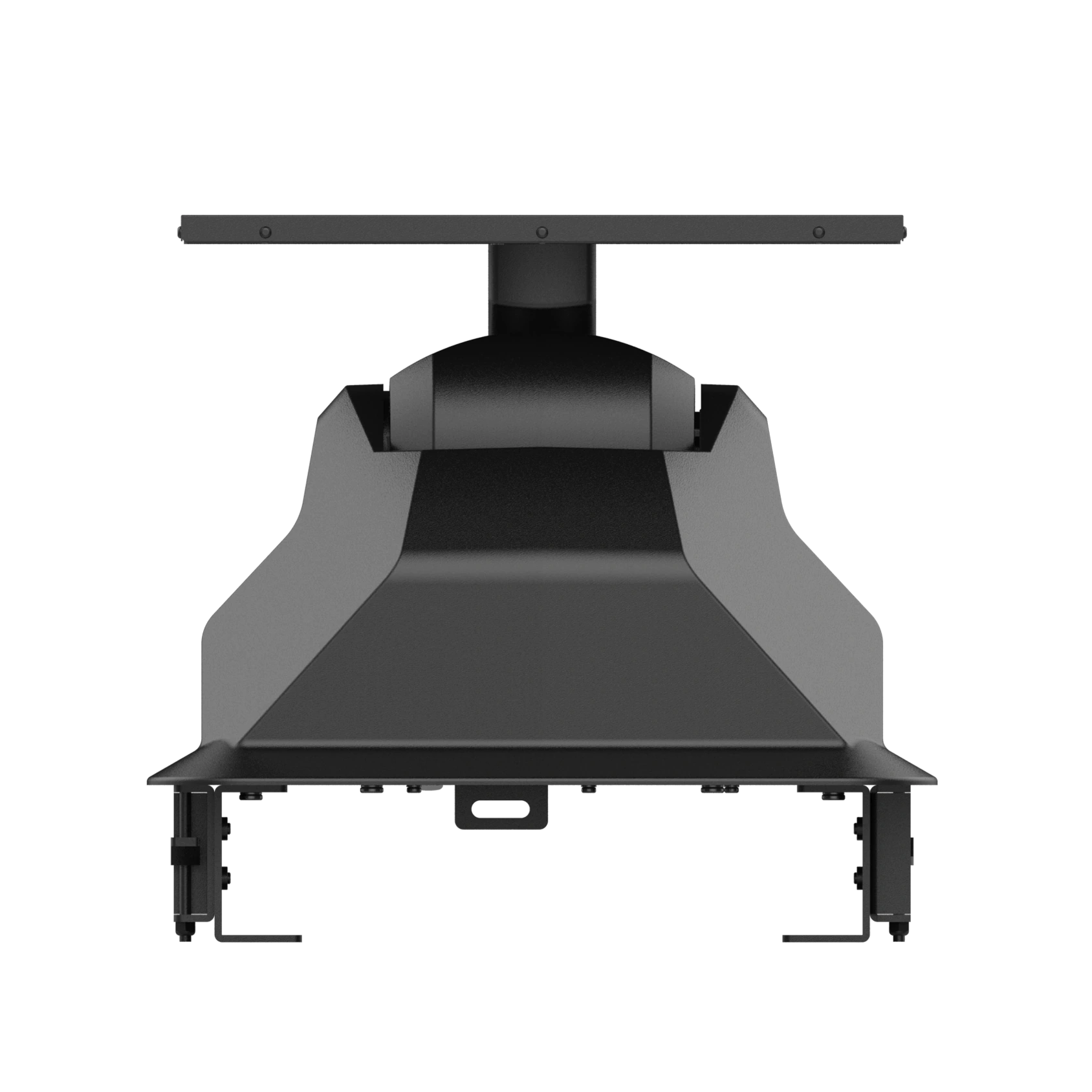

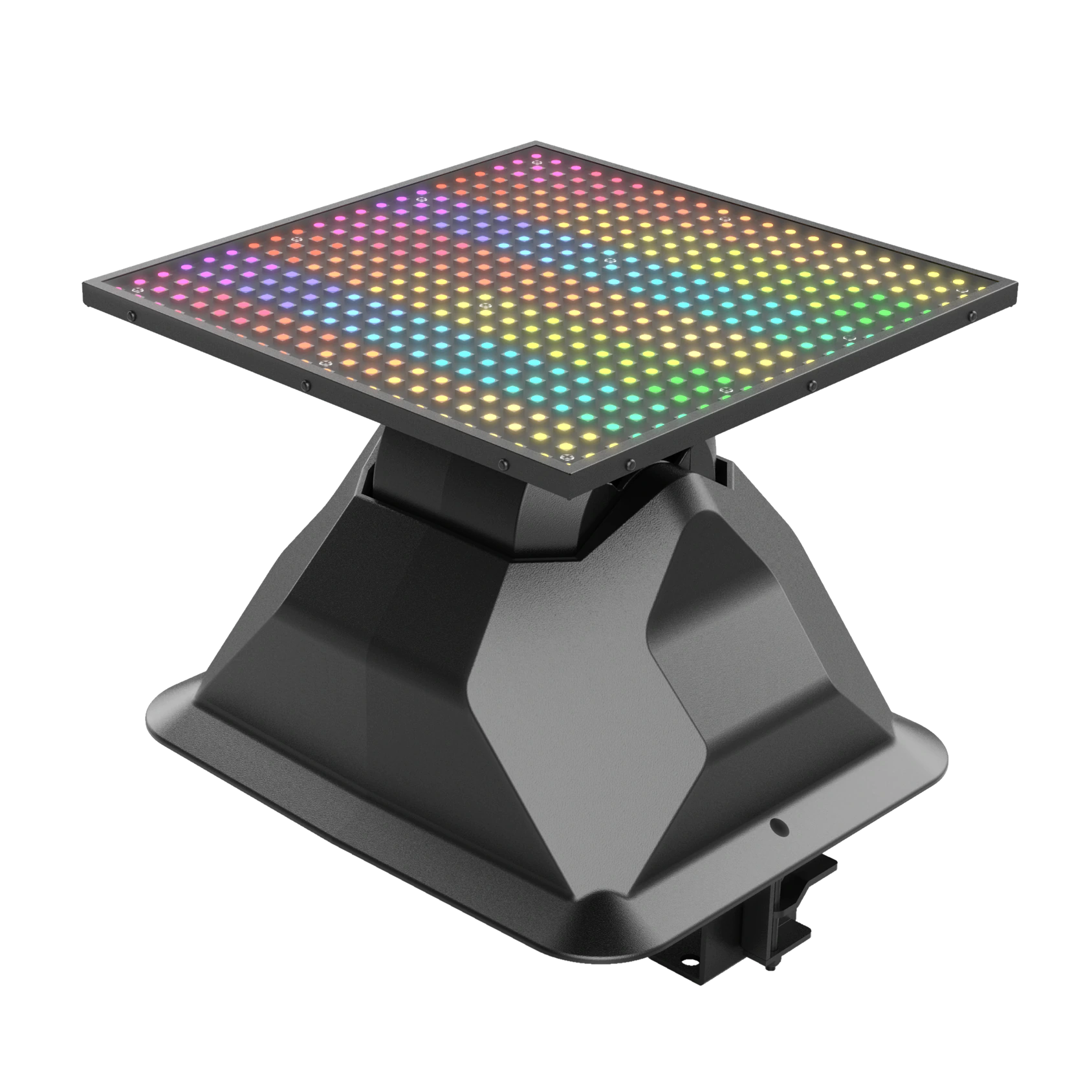

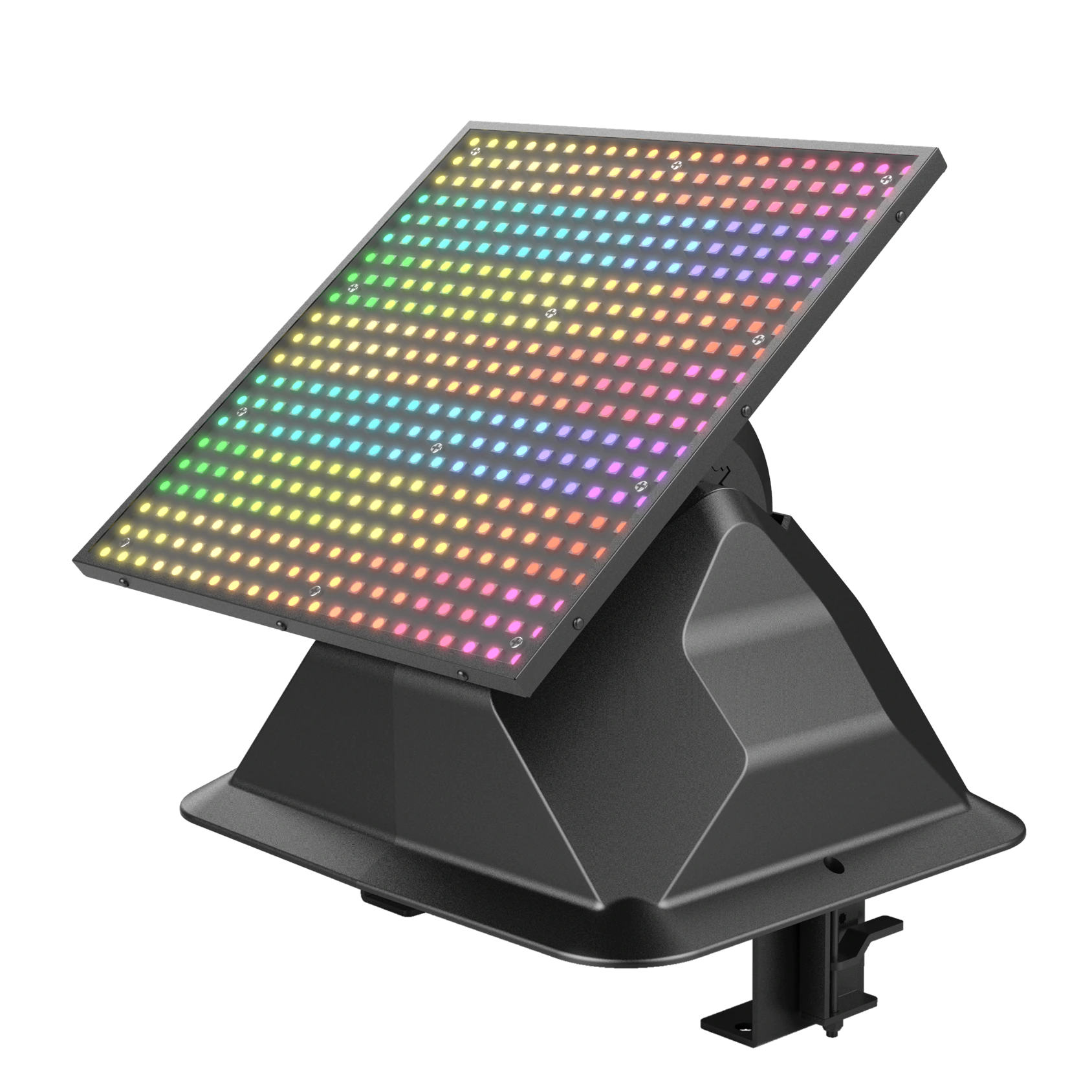

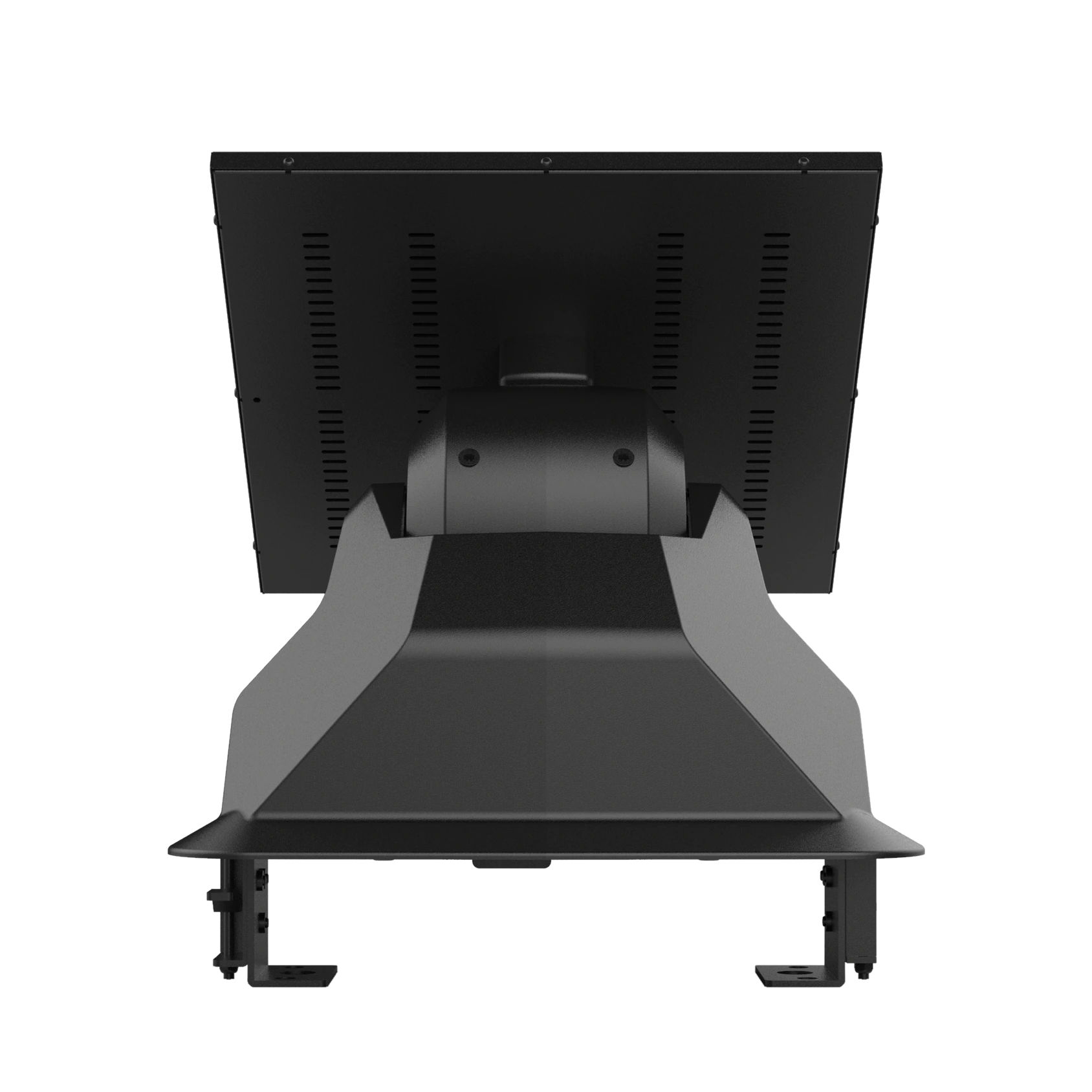

PM 1E 是一款具备摇头功能的LED面板效果灯，可以提供像素、频闪、染色及艺术装置效果。设计紧凑轻巧，造型灵活百变，具备441颗RGB LED灯珠分49区单独控制，9颗灯珠形成一个控制区块，根据使用需求打造出风格多样的图形背景墙，亦可作简单的视频特效。

出众的染色效果，配合强劲的频闪功能，可营造多种幻变光效。特别的底座设计可内置嵌入天花板，墙面侧挂或吊挂。卓越的光束、强烈闪烁色彩覆盖广阔区域等强大功能，适合于购物中心、会议中心、博物馆、科技馆、机场等大型公众场地及娱乐包房、酒吧、酒店等多种场地。

技术参数

型号

产品型号: BIG BANG
Model Code: PM 1E

T/CETA001-2021标准型号

XS-LED88C4/D20

光源

光源: 441 x 0.2W RGB LED
光源预期使用寿命: 20,000小时*
*数据由光源供应商提供

光学系统

光束角度: 60°
光斑角度: 116°

控制与程序

4 个触摸按键
控制面板: LCD显示屏
控制协议: DMX512，RDM
DMX 通道模式: 2
控制通道: 16/156
软件升级: 通过DMX连接升级软件

X轴/Y轴

X轴运转角度: 74°
Y轴运转角度: 74°
X轴/Y轴精度扫描: 16 bit

其他效果

多种速度频闪效果
0-100%顺滑调光

电气与接口

输入电压范围: 180-240Vac; 50/60Hz
功率: 120W
电源插座: IEC电源连接器输入
信号输入/输出: RJ45接口

灯具规格

灯具尺寸:
- 宽: 272 mm (10.7")
- 深: 246 mm (9.7")
- 高: 250 mm (9.8")
- 净重: 4.5 kg (9.9 lbs)

包装规格

纸箱尺寸:
- 宽: 375 mm (14.8")
- 深: 335 mm (13.2")
- 高: 360 mm (14.2")
- 重量: 6.2 kg (13.7 lbs) (含纸箱, 1装1标准)

工作环境

最高环境温度: 40°C
最低工作温度: 0°C
最高表面温度: 75°C
防护等级: IP20

认证

CE认证

安装

可水平或垂直安装
通用的工作位置
可内置嵌入天花板安装
可双灯钩吊挂安装
保险绳连接孔

出厂配置

电子说明书
电源线

可选购配件(含配件编码)

灯钩: C-100A (2060001635)
保险绳: SW-02 (2060000200-B)
信号线: RJ45信号线
柔化配件: 63583412

尺寸图

照度图

资料下载

	版本	查看	下载	更新
灯库下载

展开

收起

可选配件

名称: SW-02

产品码: 2060000200-B

材质: Φ2.5 钢丝

名称: C-100A

产品码: 2060001635

最大承重: 100 kg (220.5 lbs)

产品名称: RJ45-XLR

名称: RJ45信号线
