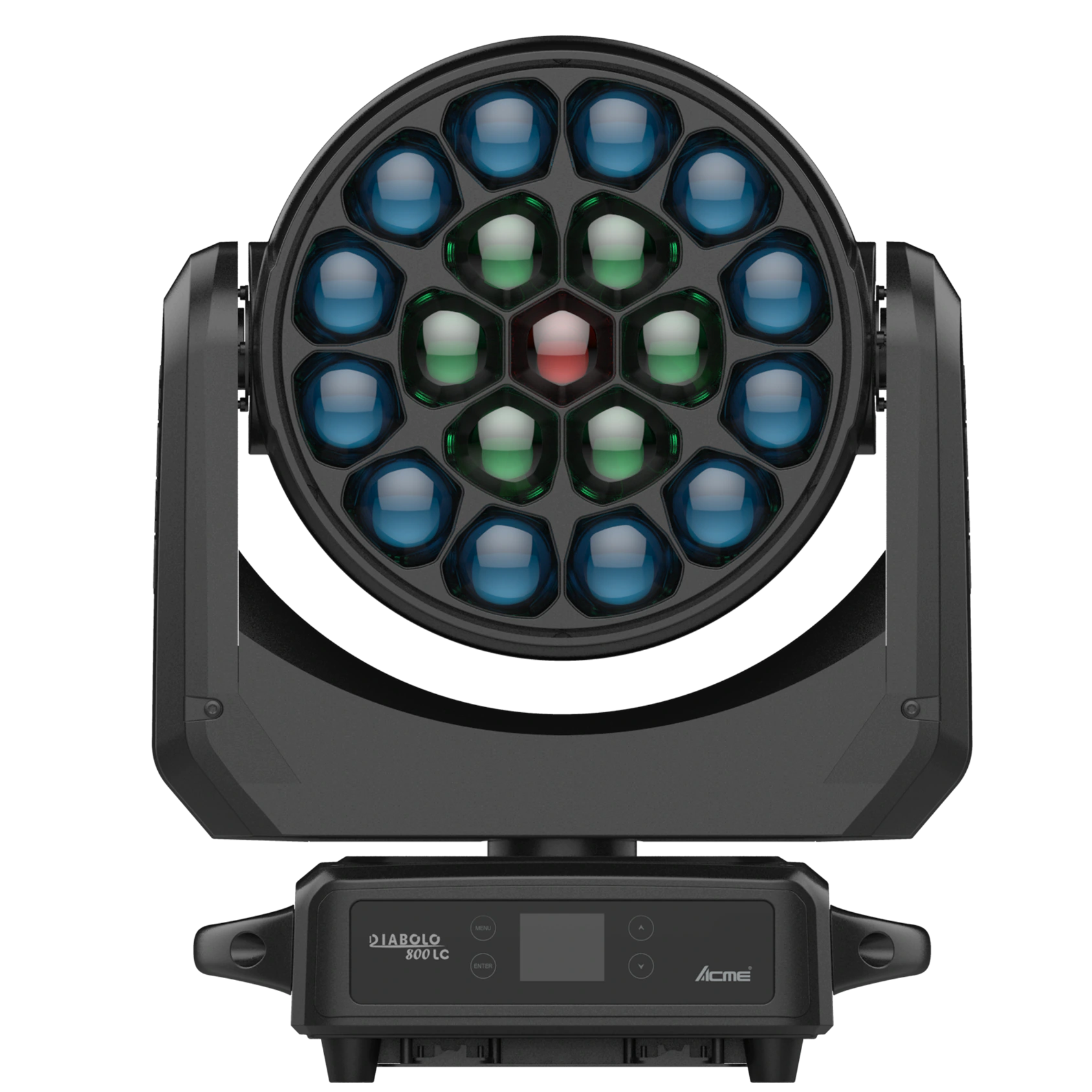

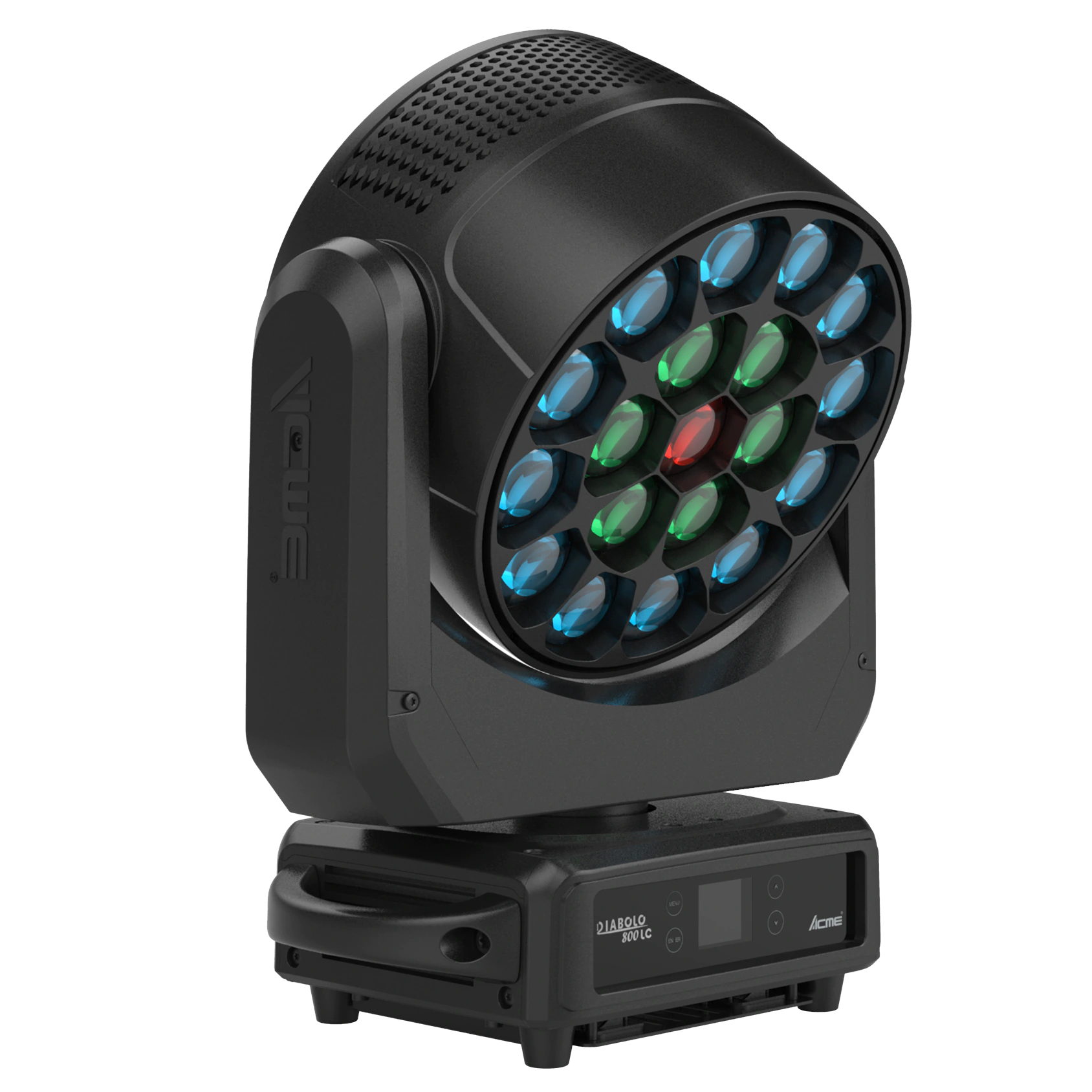

DIABOLO 800 LC | ACME LIGHTING

主要特征

19 x 50W RGBL LEDs

光源

20,000 小时

光源预期使用寿命

18,500 lumens

灯具光通量

5°-50°

缩放角度

8,000K

灯具色温

21 kg (46.3 lbs)

灯具重量

功能概述

WASH 800 是在 CM 800Z 基础上迭代升级，亮度与整机性能实现大幅升级，非常适用于夜店、酒吧、剧院及各类室内演艺场所。

灯具搭载19颗50W RGBL LED光源，光输出高达18,500流明，性能远超上一代产品。与 CM 800Z不同，WASH 800 支持圈控，赋予灯光设计师更高创作自由度，可打造轮廓分明的画面、灵动的光影点缀以及极具视觉冲击力的特效。5°‑50°超大变焦范围，可在高聚光强光束与均匀柔和铺光之间无缝切换，轻松适配各类应用场景。

灯具支持2,500K‑8,000K线性CTO色温调节，可精准调控色温，既能输出温暖氛围感色调，也可输出冷冽干净冷白光，适配各类氛围场景。搭配0‑100%顺滑调光曲线，全亮度档位下调光过渡自然稳定，无频闪。

整机重量仅21kg，吊装适配性优异，装台效率更高；兼具强劲视觉表现力与轻量化机身，是灯光设计师兼顾创作自由度与现场作业效率的理想之选。

技术参数

型号

产品型号: DIABOLO 800 LC
Model Code: WASH 800

T/CETA001-2021标准型号

W-LED950C4/D20

光源

光源: 19 x 50W RGBL LEDs
灯具光通量:
- 自动模式: 18,500 lumens
- 安静模式: 10,100 lumens
- 超安静模式: 7,980 lumens
灯具色温: 8,000K
光源预期使用寿命: 20,000小时*
*数据由光源供应商提供

光学系统

缩放角度: 5°-50°

控制与程序

4 个触摸按键
控制面板: LCD显示屏
控制协议: DMX512，RDM
DMX 通道模式: 3
控制通道: 20/21/28
软件升级: 通过DMX连接升级软件

X轴/Y轴

X轴运转角度: 540°
Y轴运转角度: 220°
X轴/Y轴位置失步自动校正
X轴/Y轴精度扫描: 16 bit

颜色盘

线性CTO色温调节: 2,500K-8,000K

其他效果

多种速度频闪效果
0-100%顺滑调光
电动调焦系统
集光束、染色于一体

电气与接口

输入电压范围: 180-240Vac; 50/60Hz
功率: 910W
电源插座: 电源连接器输入/输出
信号输入/输出: 3芯卡侬头插座

灯具规格

灯具尺寸:
- 宽: 390 mm (15.4")
- 深: 297 mm (11.7")
- 高: 447 mm (17.6")
- 净重: 21.0 kg (46.3 lbs)

包装规格

飞行箱尺寸:
- 宽: 915 mm (36.0")
- 深: 470 mm (18.5")
- 高: 765 mm (30.1")
- 重量: 84.6 kg (186.5 lbs) (含飞行箱, 1装2标准)
纸箱尺寸:
- 宽: 490 mm (19.3")
- 深: 340 mm (13.4")
- 高: 620 mm (24.4")
- 重量: 24.0 kg (52.9 lbs) (含纸箱, 1装1标准)

工作环境

最高环境温度: 45°C
最低工作温度: -10°C
最高表面温度: 85°C
防护等级: IP20

噪音数据

自动模式: 43 dB(A) @ 1 m
安静模式: 36 dB(A) @ 1 m
超安静模式: 34 dB(A) @ 1 m

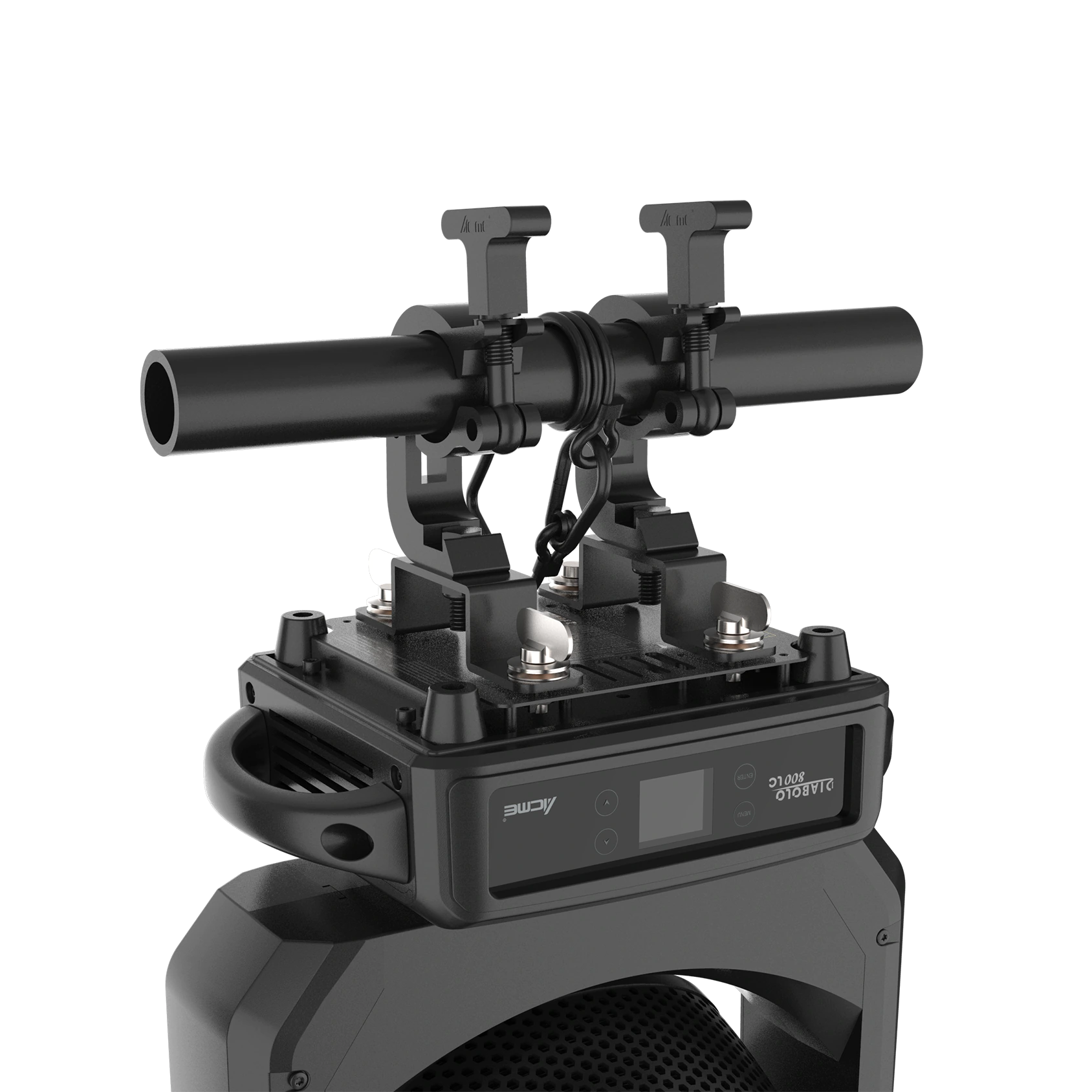

安装

可水平或垂直安装
2个快锁挂钩
保险绳连接孔

出厂配置

电子说明书
电源线
2个快锁挂钩(3002001497)

可选购配件(含配件编码)

灯钩: C-250B (2060001632-B)
保险绳: SW-05 (2060001603-E)
信号线: 3芯或5芯信号线

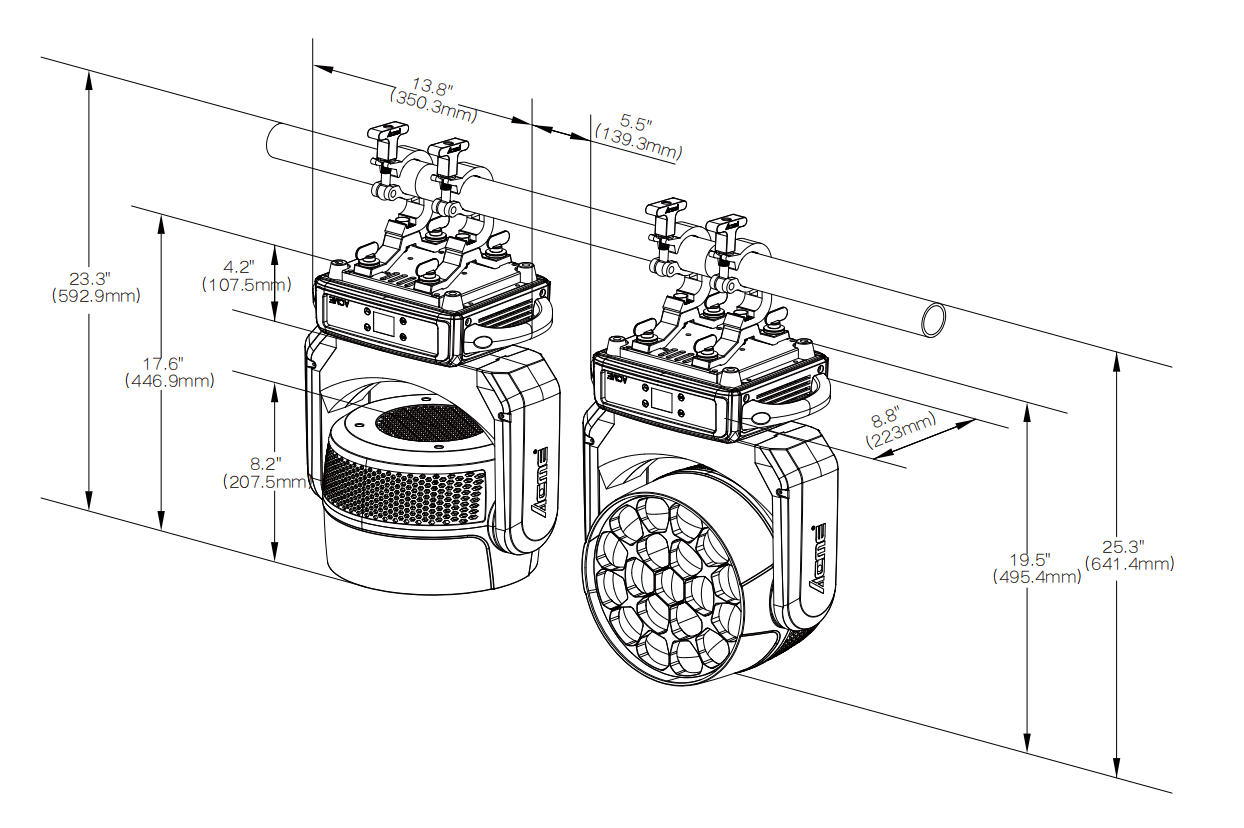

尺寸图

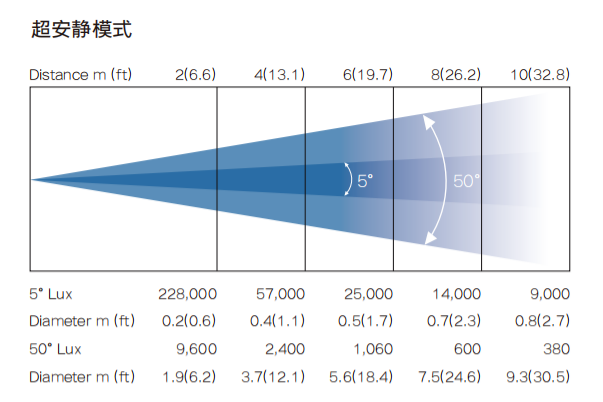

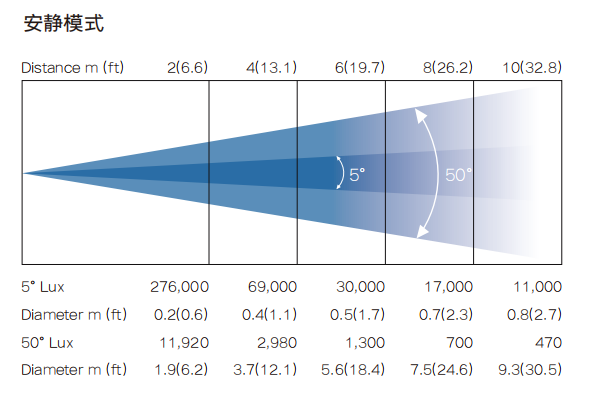

照度图

资料下载

	版本	查看	下载	更新
灯库下载

展开

收起

可选配件

名称: SW-05

产品码: 2060001603-E

材质: Φ5 塑管保险绳

名称: XLR 信号线

名称: C-250B

产品码: 2060001632-B

最大承重: 250 KG

包装: 单个PE袋包装，30个一箱
