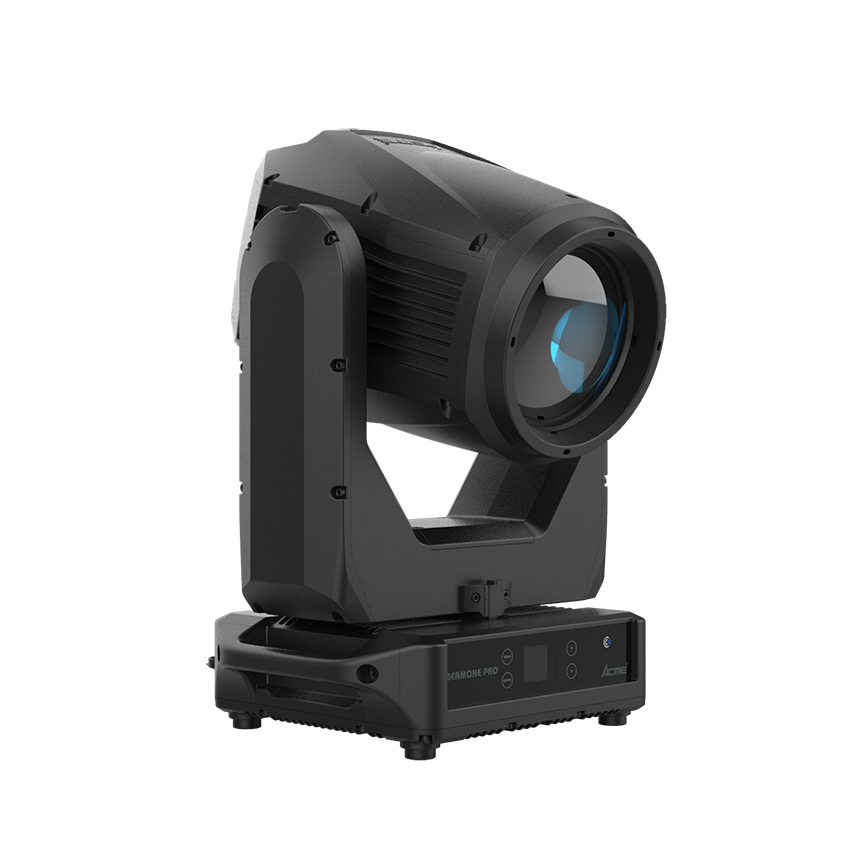

BEAMONE PRO | ACME LIGHTING

主要特征

Philips MSD Infinity 12X 光引擎

光源

8,000 小时

光源预期使用寿命

9,000 lumens

灯具光通量

7,400K

灯具色温

2°

光束角度

152 mm

出光镜头直径

22.5 kg (49.6 lbs)

灯具重量

功能概述

XP 300 BEAM IP 摇头光束灯专为户外演出打造，具备强劲光束冲击力、远距离投射能力，同时拥有全天候稳定可靠的工作性能。产品融合放电灯泡极强的空中光束优势，运维成本更低，可为演唱会、音乐节及各类户外活动打造极具视觉张力的灯光效果。

搭载Philips MSD Infinity 12X 光源，输出光线高度稳定，色温精准恒定7400K。光源使用寿命长达8000小时，大幅降低后期维护工作量。配备152mm的出光镜头直径，可形成极窄2°光束，5米处照度高达1,952,000 lux，能够在大型舞台上空呈现锐利清晰的空中光束效果。

灯具搭载CMY混色系统与可变CTO色温校正功能，实现顺滑色彩过渡与精细色调调控；同时配置14种颜色+白色、10种图案+3种效果图案+白圆，并配备一片雾化片。为打造层次丰富的空中光影效果，灯具配备1个8棱镜, 1个6面直排镜，相比单一棱镜能够营造更丰富的光影纹理，提升画面纵深感。

XP 300 BEAM IP整机采用坚固IP66防护外壳，可在雨天、潮湿、多尘环境稳定保障演出顺利进行；机身结构紧凑，在实现极致视觉表现力的同时，最大限度减少维护成本。

整机采用坚固IP66防护外壳，无惧雨水、潮湿、粉尘环境，保障演出稳定进行。XP 300 BEAM IP机身结构紧凑，在缩小体积的同时实现震撼视觉效果，最大限度减少后期维护工作量。

技术参数

型号

产品型号: BEAMONE PRO
Model Code: XP 300 BEAM IP

T/CETA001-2021标准型号

B-JL230BG/D66

光源

光源: Philips MSD Infinity 12X
灯具光通量: 9,000 lumens
灯具色温: 7,400K
光源预期使用寿命: 8,000小时*
*数据由光源供应商提供

光学系统

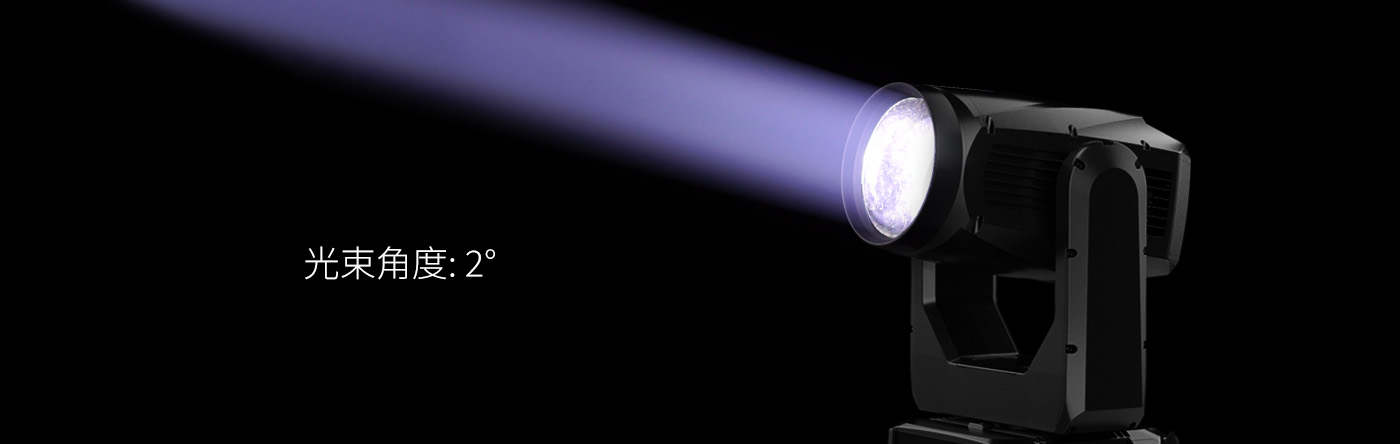

光束角度: 2°
出光镜头直径: 152 mm

控制与程序

4 个触摸按键
控制面板: LCD显示屏
控制协议: DMX512，RDM，Art-Net，sACN，NFC
DMX 通道模式: 1
控制通道: 25
软件升级: 通过DMX连接升级软件
人工智能物联网系统: AIOT丰云系统,“毅•数据”自动管理系统(选配)

X轴/Y轴

X轴运转角度: 540°
Y轴运转角度: 270°
X轴/Y轴位置失步自动校正
X轴/Y轴精度扫描: 16 bit
固定锁: 水平/垂直锁

颜色盘

线性CMY混色系统
1个颜色盘:
- 14种颜色+白色

固定图案盘

1个固定图案盘:
- 10种图案+3种效果图案+白圆

棱镜

1个8棱镜, 1个6面直排镜，可双向旋转

雾化片

1片雾化片

其他效果

多种速度频闪效果
0-100%顺滑调光
电动调焦系统

电气与接口

输入电压范围: 100-240Vac; 50/60Hz
功率: 405W

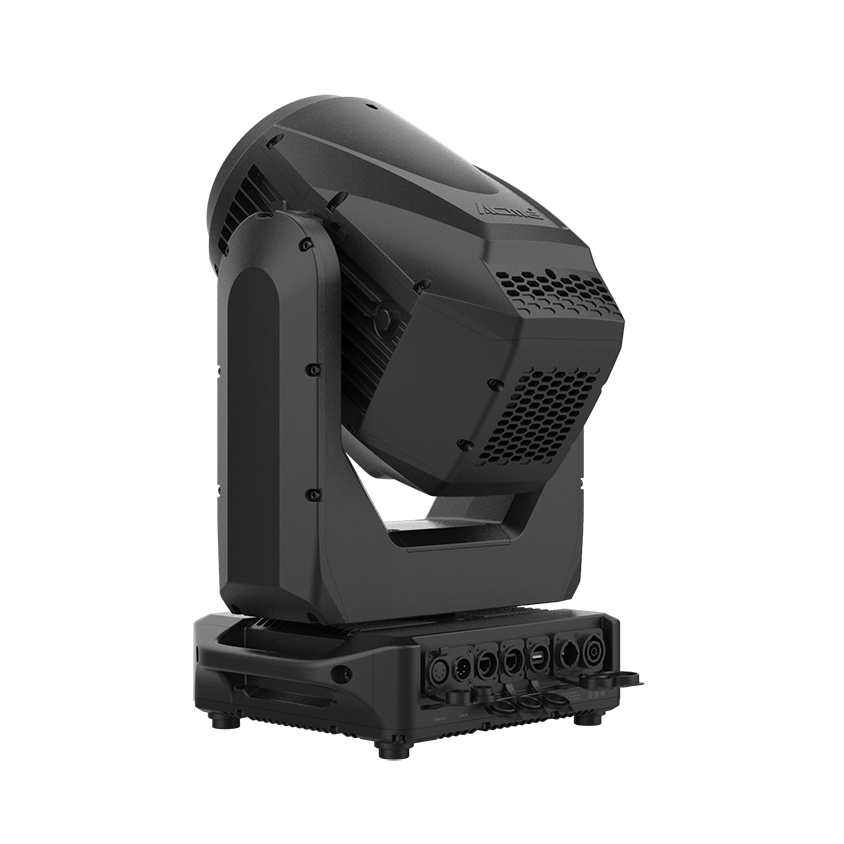

电源插座: 防水电源连接器输入/输出
信号输入/输出: 3芯或5芯防水卡侬头插座，RJ45防水插座

灯具规格

灯具尺寸:
- 宽: 332 mm (13.1")
- 深: 256 mm (10.1")
- 高: 531 mm (20.9")
- 净重: 22.5 kg (49.6 lbs)

包装规格

纸箱尺寸:
- 宽: 470 mm (18.5")
- 深: 450 mm (17.7")
- 高: 645 mm (25.4")
- 重量: 26.5 kg (58.4 lbs) (含纸箱, 1装1标准)

工作环境

最高环境温度: 45°C
最低工作温度: -20°C
最高表面温度: 80°C
防护等级: IP66

噪音数据

标准模式: 44 dB(A) @ 1 m

认证

CE认证
UKCA认证

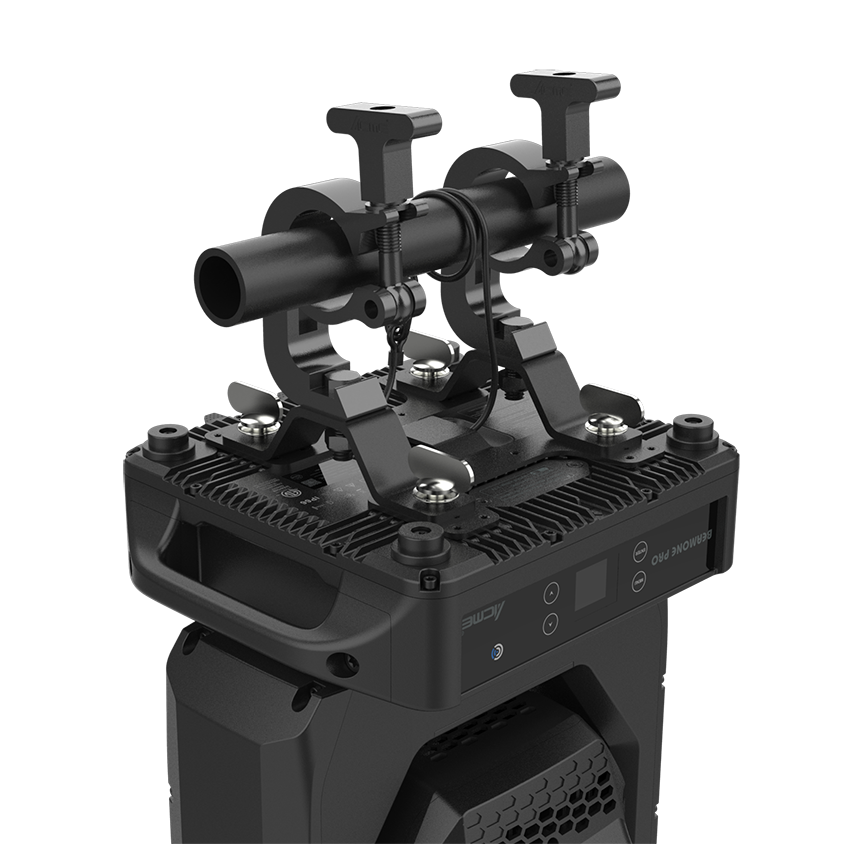

安装

可水平或垂直安装
2个快锁挂钩
保险绳连接孔

出厂配置

电子说明书
电源线
2个快锁挂钩(3002003003)

可选购配件(含配件编码)

灯钩: C-250B (2060001632-B)
保险绳: SW-05 (2060001603-E)
信号线: 3芯或5芯信号线， 3芯防水信号线(3017013468) /5芯防水信号线(3017013473)

尺寸图

照度图

效果

颜色盘

线性CMY混色系统

CMY

线性CTO色温调节

2,800K-6,800K

颜色盘: 14种颜色+白色

红色
3027001455
序号 1

橙色
3027005064
序号 2

蓝绿
3027001457
序号 3

浅绿色
3027005200
序号 4

黄绿
3027001459
序号 5

浅蓝紫
3027001460
序号 6

紫红
3027001461
序号 7

浅黄
3027001462
序号 8

玫红
3027001463
序号 9

蓝色
3027001464
序号 10

棕黄
3027001465
序号 11

3,200K
3027001466
序号 12

冷色
3027001467
序号 13

UV
3027001468
序号 14

图案盘

序号 1

序号 2

序号 3

序号 4

序号 5

序号 6

序号 7

序号 8

序号 9

序号 10

序号 11

序号 12

序号 13

棱镜/雾化片

1个8棱镜, 1个6面直排镜，可双向旋转

1片雾化片

8棱镜

6面直排镜

雾化片

Beam Angle

资料下载

	版本	查看	下载	更新
灯库下载

展开

收起

可选配件

产品名称: XP 300 BEAM IP飞行箱

装箱数: 2装1 标准

箱重: 54.0 kg (119.1 lbs)

飞行箱尺寸: 930 x 580 x 810 mm (36.6'' x 22.8'' x 31.9'')

名称: SW-05

产品码: 2060001603-E

材质: Φ5 塑管保险绳

名称: 防水信号线

产品码: 3017013468(3芯) / 3017013473(5芯)

长度: 3m

名称: C-250B

产品码: 2060001632-B

最大承重: 250 KG

包装: 单个PE袋包装，30个一箱
