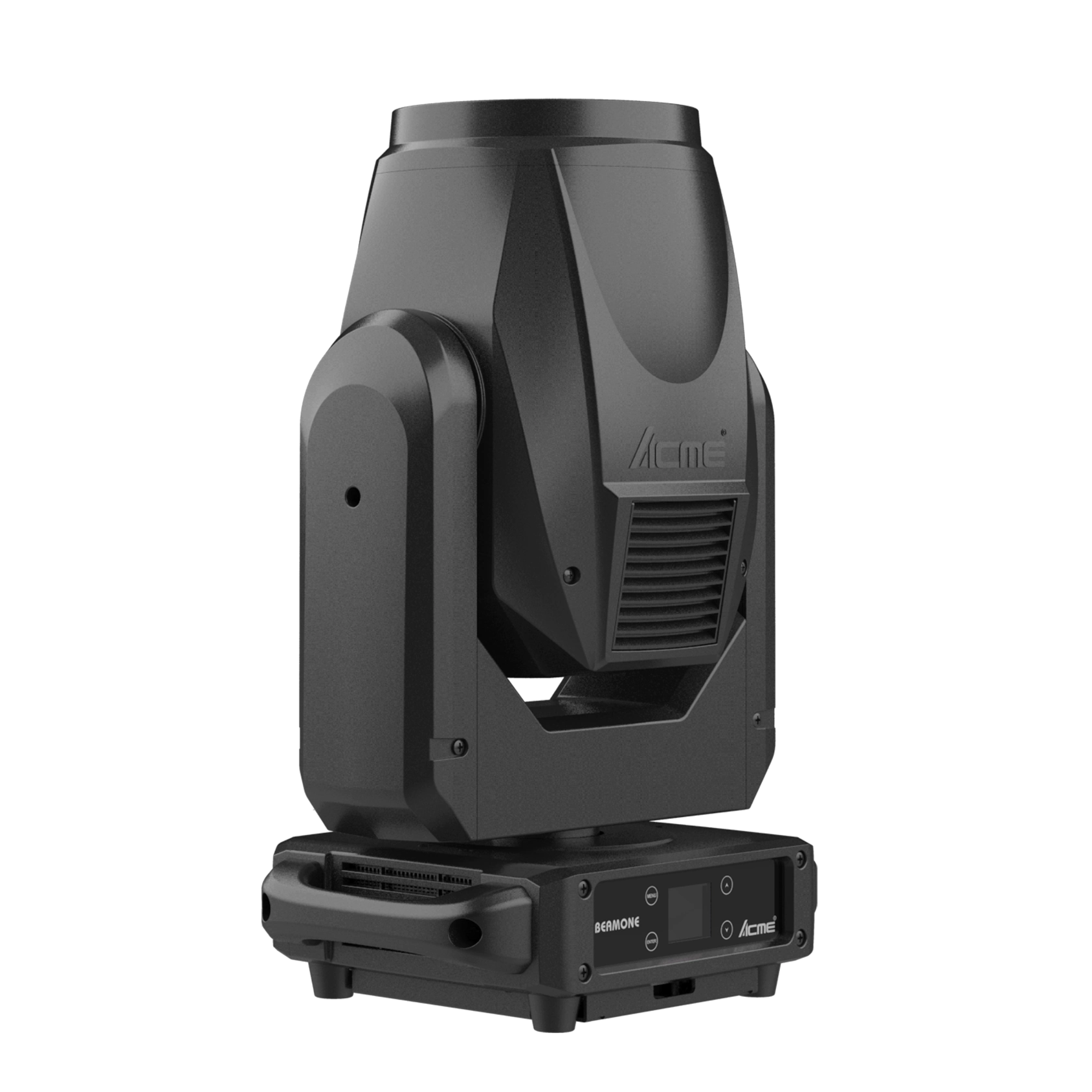

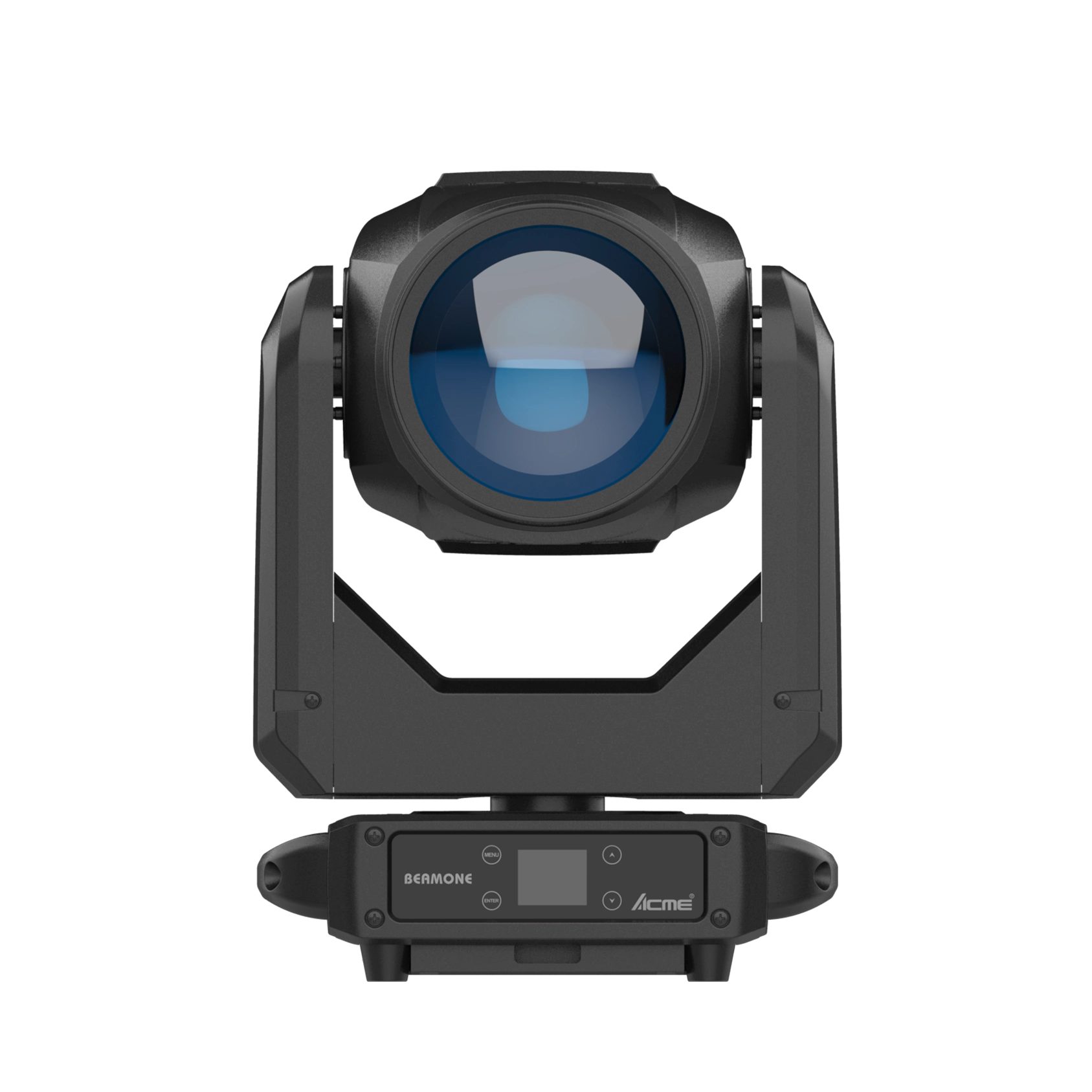

BEAMONE | ACME LIGHTING

主要特征

Osram SIRIUS HRI Galaxy 20D

光源

8,000 小时

光源预期使用寿命

8,400 lumens

灯具光通量

Ra>70

显色指数

7,300K

灯具色温

2°

光束角度

152 mm

出光镜头直径

15.5 kg (34.2 lbs)

灯具重量

功能概述

ACME BEAM 1 选用欧司朗SIRIUS HRI Galaxy 20D高性能光源，光源寿命长达8,000小时。配备2° 的精准光束角度、152 mm 的出光镜头，光束锐利而清晰。7,300K 的灯具色温投射出清晰明亮的光线，提供8,400流明的卓越光通量。

其创意功能丰富多样，配备14色颜色盘、10个图案及3个效果图案的固定图案盘，以及1个可双向旋转的8棱镜，营造出层次丰富的多维视觉效果。此外，搭载了1片雾化片，能够轻松柔化光束，进一步提升场景层次感。

BEAM 1 集强大功能于一身，是一款专为剧院、电视演播室和俱乐部等小型空间场景设计的紧凑型室内光束灯。

技术参数

型号

产品型号: BEAMONE
Model Code: BEAM 1

T/CETA001-2021标准型号

B-JL230BG/D20

光源

光源: Osram SIRIUS HRI Galaxy 20D光引擎
灯具光通量: 8,400 lumens
灯具色温: 7,300K
光源预期使用寿命: 8,000小时*
*数据由光源供应商提供

光学系统

光束角度: 2°
显色指数: Ra>70
出光镜头直径: 152 mm

控制与程序

4 个触摸按键
控制面板: LCD显示屏
控制协议: DMX512，RDM
DMX 通道模式: 1
控制通道: 16
软件升级: 通过DMX或者USB连接升级软件

X轴/Y轴

X轴运转角度: 540°
Y轴运转角度: 260°
X轴/Y轴位置失步自动校正
X轴/Y轴精度扫描: 16 bit

颜色盘

1个颜色盘:
- 14种颜色+白色

固定图案盘

1个固定图案盘:
- 10种图案+3种效果图案+白圆

棱镜

1个8棱镜, 可双向旋转

雾化片

1片雾化片

其他效果

多种速度频闪效果
0-100%顺滑调光
电动调焦系统

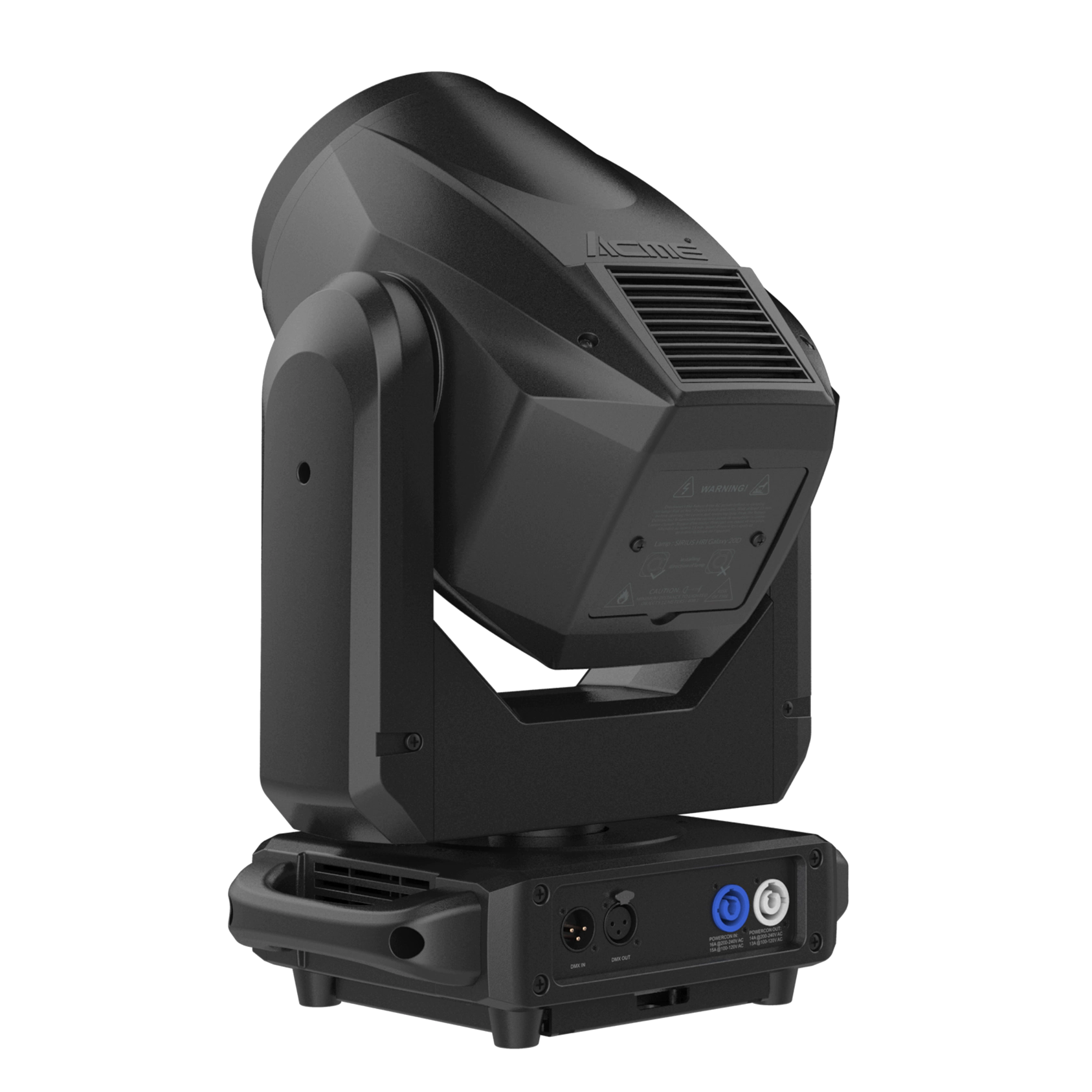

电气与接口

输入电压范围: 180-240Vac; 50/60Hz
功率: 350W
电源插座: 电源连接器输入/输出
信号输入/输出: 3芯或5芯卡侬头插座

灯具规格

灯具尺寸:
- 宽: 308 mm (12.1")
- 深: 216 mm (8.5")
- 高: 485 mm (19.1")
- 净重: 15.5 kg (34.2 lbs)

包装规格

纸箱尺寸:
- 宽: 405 mm (15.9")
- 深: 405 mm (15.9")
- 高: 570 mm (22.4")
- 重量: 18.6 kg (41.0 lbs) (含纸箱, 1装1标准)

工作环境

最高环境温度: 45°C
最低工作温度: -10°C
最高表面温度: 80°C
防护等级: IP20

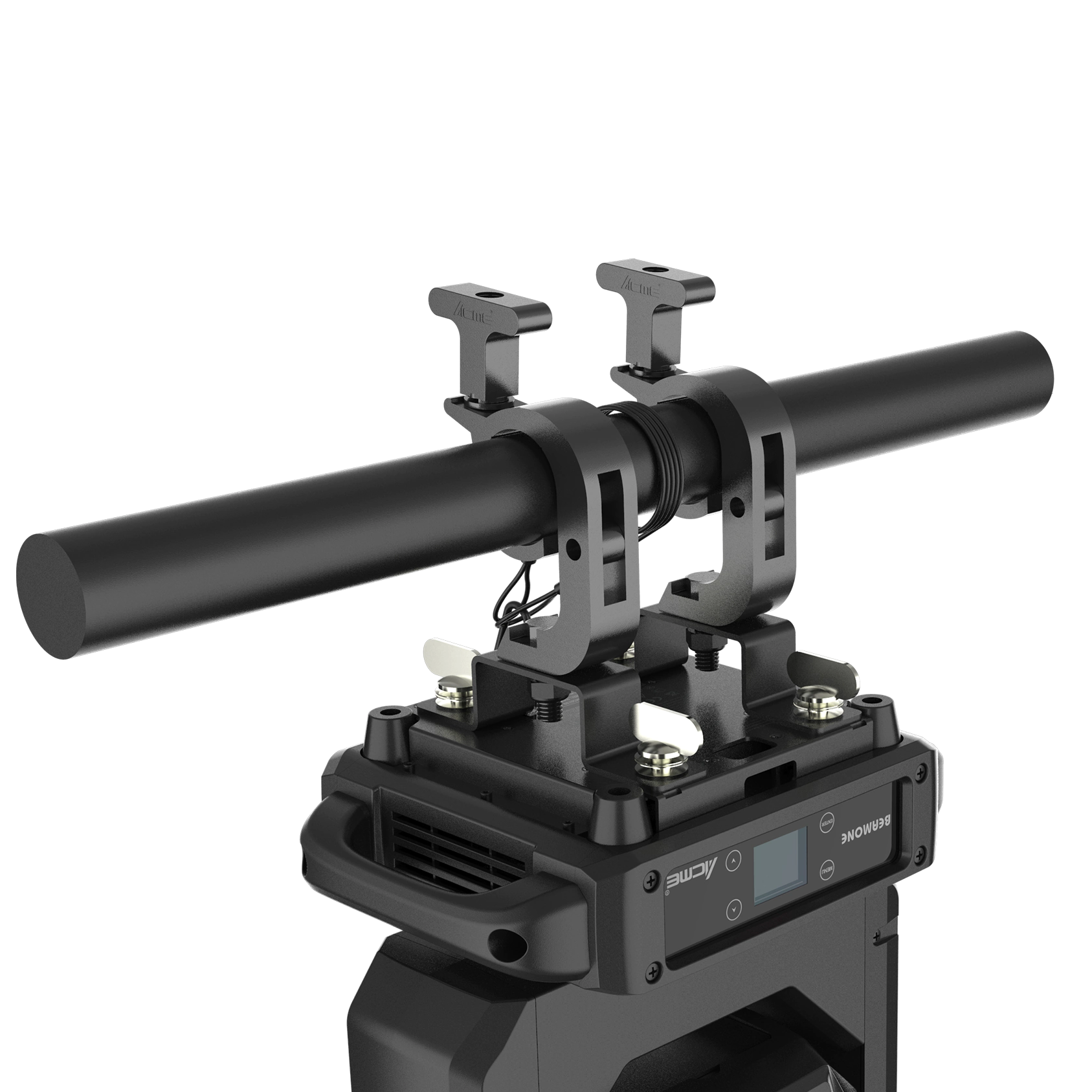

安装

可水平或垂直安装
2个快锁挂钩
保险绳连接孔

出厂配置

电子说明书
电源线
2个快锁挂钩(3002000288-B)

可选购配件(含配件编码)

灯钩: C-250B (2060001632-B)
保险绳: SW-02 (2060000200)
信号线: 3芯或5芯信号线

尺寸图

照度图

效果

颜色盘

颜色盘: 14种固定颜色+白色

红色
3027001455
序号1

橙红
3027005064
序号 2

蓝绿
3027001457
序号 3

浅绿色
3027005200
序号 4

黄绿
3027001459
序号 5

浅蓝紫
3027001460
序号 6

紫红
3027001461
序号 7

浅黄
3027001462
序号 8

玫红
3027001463
序号 9

兰色
3027001464
序号 10

棕黄
3027001465
序号 11

棕色
3027001466
序号 12

6,000K
3027001467
序号 13

UV紫
3027001468
序号 14

图案盘

1个固定图案盘: 10种图案+3种效果图案+白圆

序号 1

序号 2

序号 3

序号 4

序号 5

序号 6

序号 7

序号 8

序号 9

序号 10

序号 11

序号 12

序号 13

棱镜/雾化片

1个8棱镜, 可双向旋转

1片雾化片

8棱镜

1片雾化片

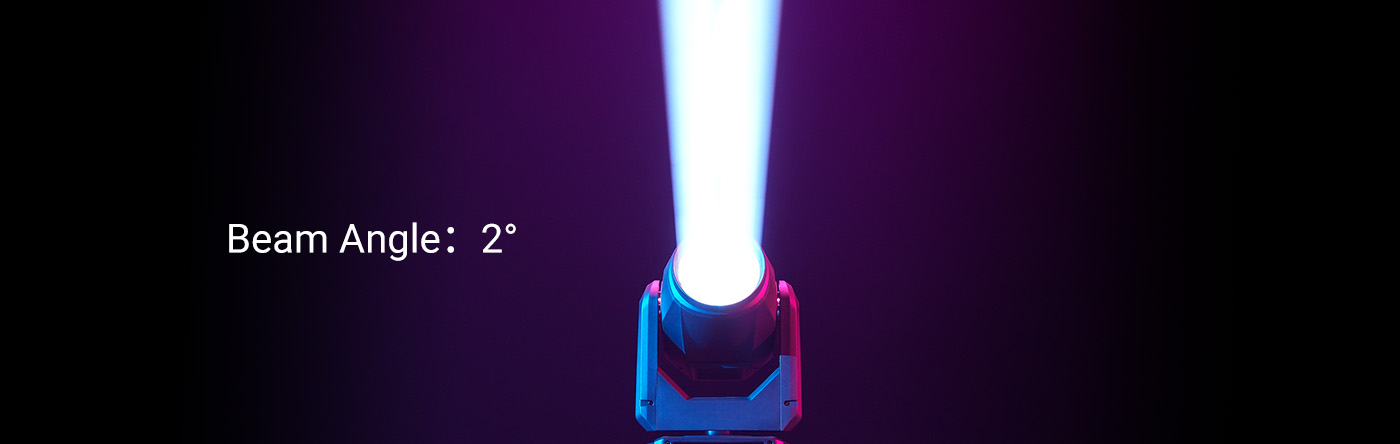

Beam Angle

资料下载

	版本	查看	下载	更新
灯库下载

展开

收起

可选配件

名称: SW-02

产品码: 2060000200-B

材质: Φ2.5 钢丝

名称: XLR 信号线

名称: C-250B

产品码: 2060001632-B

最大承重: 250 KG

包装: 单个PE袋包装，30个一箱
