BAT PLUS | ACME LIGHTING

主要特征

130W 白光LED

光源

11,000K

灯具色温

20,000 小时

光源预期使用寿命

2.5°

光束角度

4.8 kg (10.6 lbs)

灯具重量

功能概述

GBF 200 拥有如同“蝙蝠”般外观设计，结构简洁整齐。灯具采用了130W 白光LED，巧妙的光学设计, 配合9种固定图案和1种流水图案，搭配拥有11种固定颜色的颜色盘打造炫丽的动感效果。GBF 200设计紧凑，易于安装，内置主副机和智能音控功能，让您可以轻松创造出流光溢彩的光效，满足KTV、派对房、酒吧等场所的灯光需求。

技术参数

型号

产品型号: BAT PLUS
Model Code: GBF 200

T/CETA001-2021标准型号

XG-LED130BG/S20

光源

光源: 130W 白光 LED
灯具色温: 11,000K
光源预期使用寿命: 20,000小时*
*数据由光源供应商提供

光学系统

光束角度: 2.5°

控制与程序

4 个触摸按键
控制面板: LCD显示屏
操作模式: DMX模式，主副机，音控
控制协议: DMX512，RDM
DMX 通道模式: 1
控制通道: 7
软件升级: 通过DMX连接升级软件
人工智能物联网系统: AIOT丰云系统,“毅•数据”自动管理系统(选配)

颜色盘

1个颜色盘:
- 11种颜色+白色

固定图案盘

1个固定图案盘:
- 9种固定图案+1 种流水图案+白圆

其他效果

多种速度频闪效果
0-100%顺滑调光
手动调焦
内置多种表演模式
智能音频控制, 灯光配合音乐节奏变化多种效果

电气与接口

输入电压范围: 180-240Vac; 50/60Hz
功率: 120W
电源插座: 电源连接器输入/输出
信号输入/输出: 3芯或5芯防水卡侬头插座

灯具规格

灯具尺寸:
- 宽: 394 mm (15.5")
- 深: 331 mm (13.0")
- 高: 183 mm (7.2")
- 净重: 4.8 kg (10.6 lbs)

工作环境

最高环境温度: 40°C
最低工作温度: -10°C
最高表面温度: 55°C
防护等级: IP20

安装

可水平或垂直安装
通用的工作位置

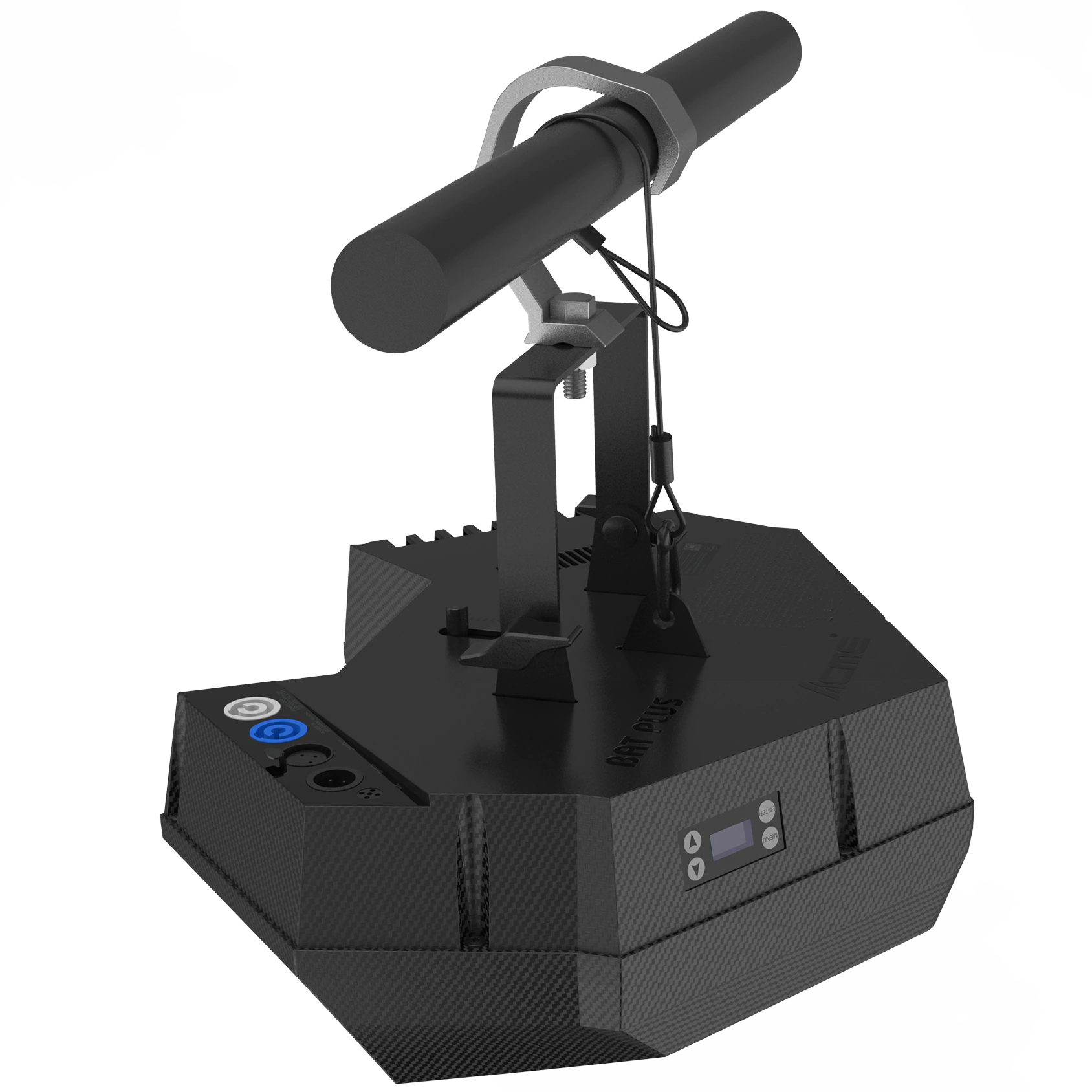

可单吊架安装 (可安装灯钩)
保险绳连接孔

出厂配置

电子说明书
电源线

可选购配件(含配件编码)

灯钩: C-100A (2060001635)
保险绳: SW-02 (2060000200-B)
信号线: 3芯防水信号线(3017013468) /5芯防水信号线(3017013473)

效果

颜色盘

红色
3027005312
序号 1

橙色
3027005313
序号 2

浅黄
3027005314
序号 3

绿色
3027005315
序号 4

黄绿
3027005316
序号 5

蓝色
3027005317
序号 6

玫红
3027005318
序号 7

兰绿
3027005319
序号 8

粉红
3027005320
序号 9

冷色
3027005321
序号 10

荧光
3027005322
序号 11

资料下载

	版本	查看	下载	更新
灯库下载

展开

收起

可选配件

名称: SW-02

产品码: 2060000200-B

材质: Φ2.5 钢丝

名称: 防水信号线

产品码: 3017013468(3芯) / 3017013473(5芯)

长度: 3m

名称: C-100A

产品码: 2060001635

最大承重: 100 kg (220.5 lbs)
