BAT | ACME LIGHTING

主要特征

80W CW LED

光源

7,500-8,000K

灯具色温

20,000 小时

光源预期使用寿命

3°

光束角度

2.3 kg (5.1 lbs)

灯具重量

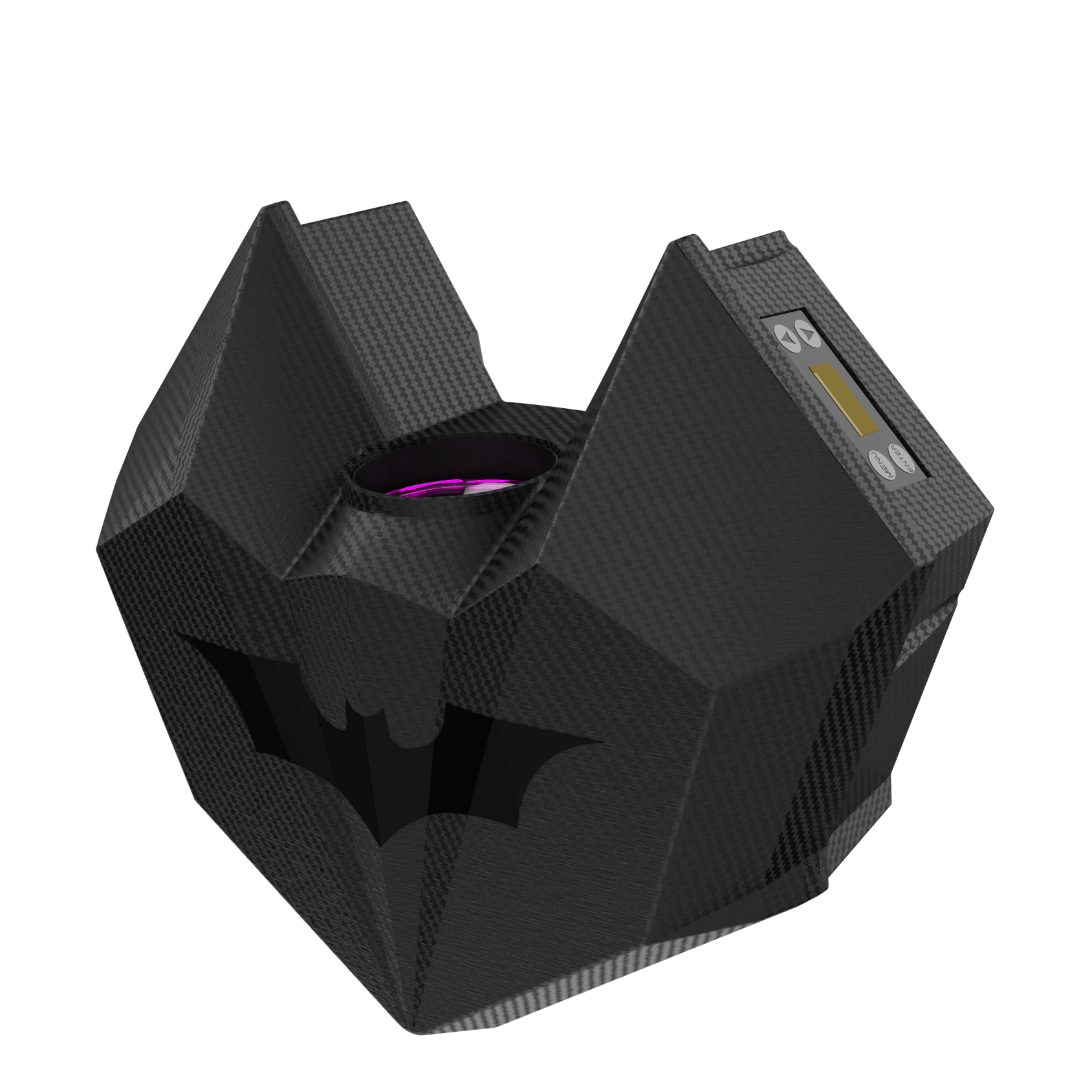

功能概述

GBF 100 拥有如同“蝙蝠”般外观设计，结构简洁整齐，增加了显示屏功能。灯具采用了80W CW LED光引擎，巧妙的光学设计, 配合7种图案和1种流水图案，打造炫丽的动感效果。GBF 100设计紧凑，易于安装，利用底座可平放于水平面，极大地增强了灯具的灵活性。内置丰富的表演模式和智能音控功能，让您可以轻松创造出流光溢彩的光效，满足KTV、派对房、酒吧等场所的灯光需求。

产品视频

技术参数

型号

产品型号: BAT
Model Code: GBF 100

T/CETA001-2021标准型号

XG-LED80BG/S20

光源

光源: 80W CW LED
灯具色温: 7,500-8,000K
光源预期使用寿命: 20,000小时*
*数据由光源供应商提供

光学系统

光束角度: 3°

控制与程序

4 个触摸按键
控制面板: LCD显示屏
操作模式: DMX模式，主副机，音控
控制协议: DMX512，RDM
DMX 通道模式: 1
控制通道: 6
软件升级: 通过DMX连接升级软件
人工智能物联网系统: AIOT丰云系统,“毅•数据”自动管理系统(选配)

固定图案盘

1个固定图案盘:
- 7种图案(有固定颜色)+1 种流水图案+白圆

其他效果

多种速度频闪效果
0-100%顺滑调光

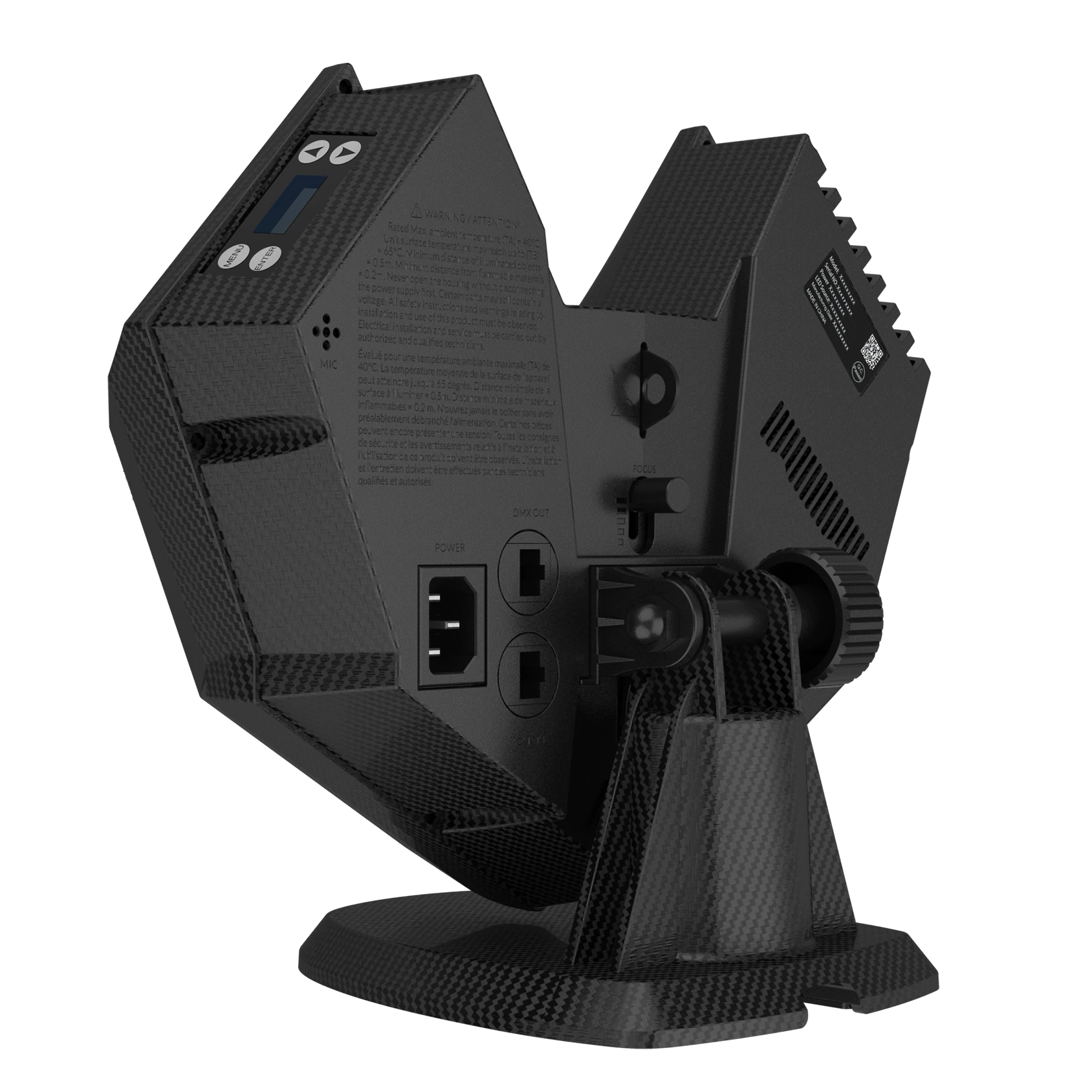

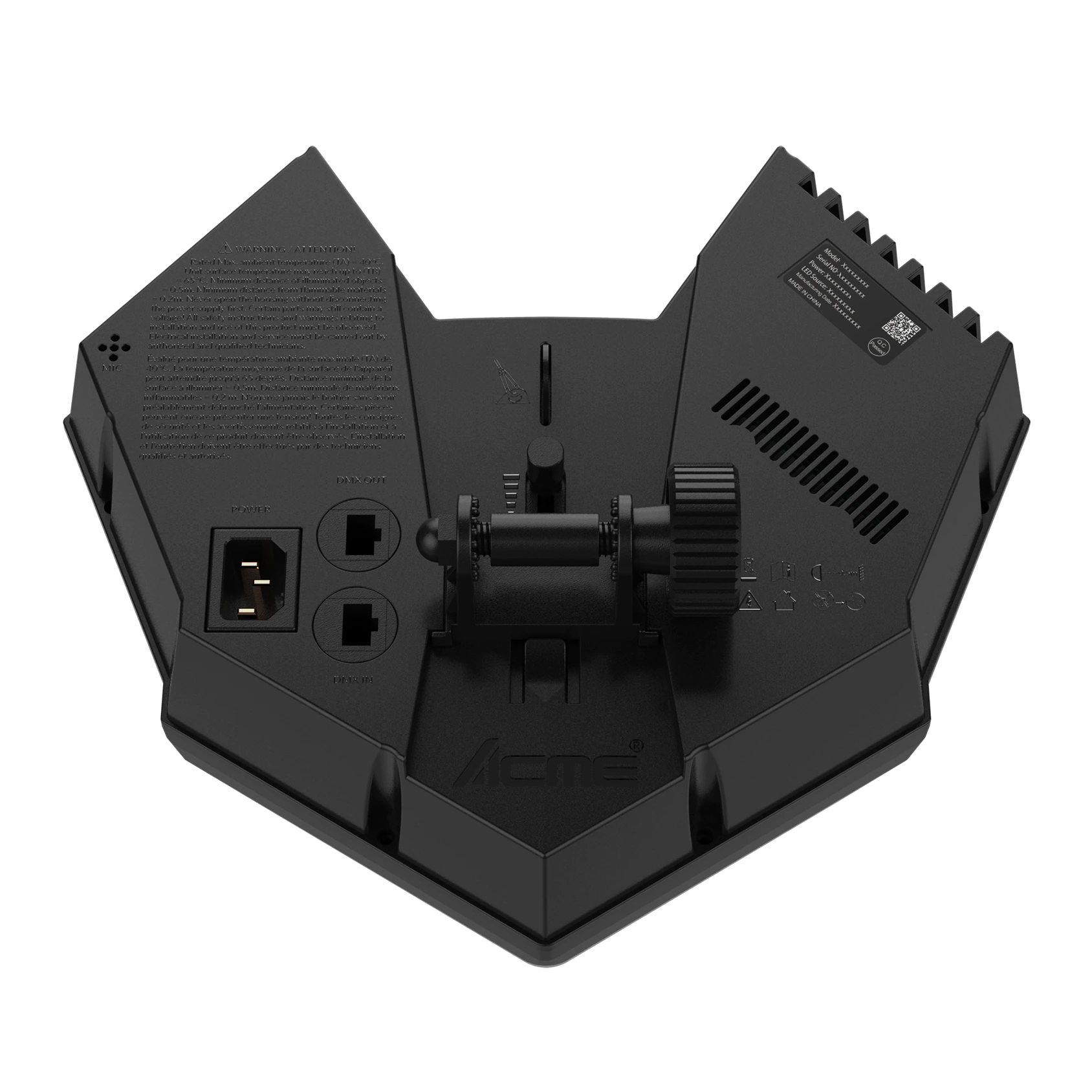

电气与接口

输入电压范围: 180-240Vac; 50/60Hz
功率: 90W
电源插座: IEC电源连接器输入
信号输入/输出: RJ45接口

灯具规格

灯具尺寸:
- 宽: 282 mm (11.1")
- 深: 237 mm (9.3")
- 高: 178 mm (7.0")
- 净重: 2.3 kg (5.1 lbs)

包装规格

纸箱尺寸:
- 宽: 345 mm (13.6")
- 深: 295 mm (11.6")
- 高: 255 mm (10.0")
- 重量: 2.9 kg (6.4 lbs) (含纸箱, 1装1标准)

工作环境

最高环境温度: 40°C
最低工作温度: 0°C
最高表面温度: 55°C
防护等级: IP20

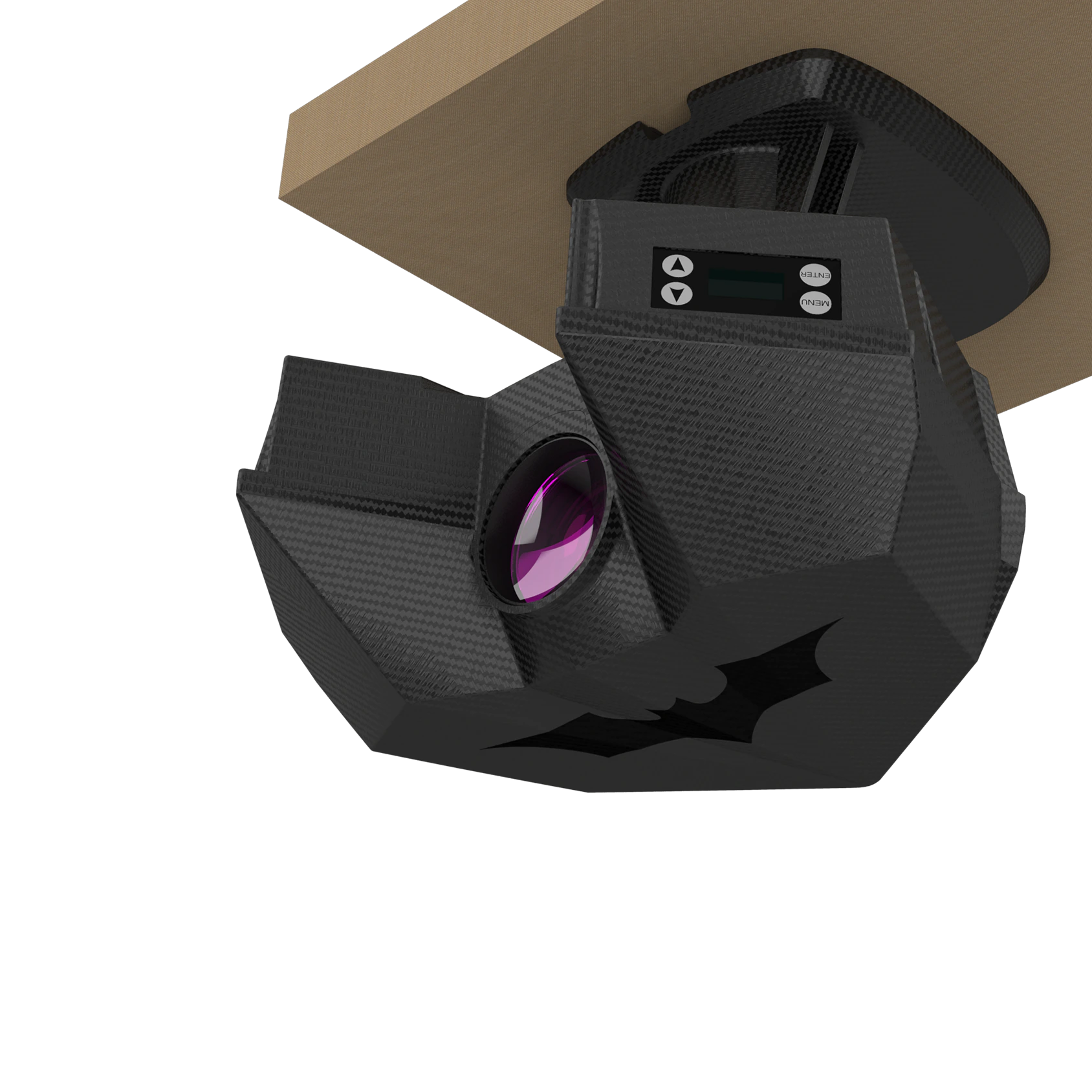

安装

可水平或垂直安装
通用的工作位置
可单吊架安装 (可安装灯钩)
保险绳连接孔

出厂配置

电子说明书
电源线

可选购配件(含配件编码)

灯钩: C-100D (2060001666)
保险绳: SW-02 (2060000200-B)
信号线: RJ45信号线
底座: 63583005

资料下载

	版本	查看	下载	更新
灯库下载

展开

收起

可选配件

名称: SW-02

产品码: 2060000200-B

材质: Φ2.5 钢丝

名称: C-100D

产品码: 2060001666

最大承重: 100 kg (220.5 lbs)

产品名称: RJ45-XLR

名称: RJ45信号线
